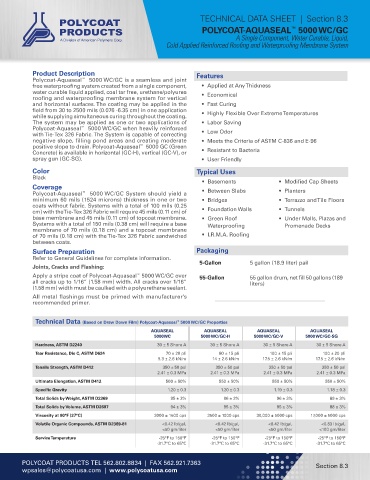

TECHNICAL DATA SHEET  |  Section 8.3
                                                                    POLYCOAT-AQUASEAL  5000 WC/GC
                                                                                                 ™
                                                                               A Single Component, Water Curable, Liquid,
                                                        Cold Applied Reinforced Roofing and Waterproofing Membrane System




            Product Description                                   Features
            Polycoat-Aquaseal   5000 WC/GC is a seamless and joint
                            ™
            free waterproofing system created from a single component,   •  Applied at Any Thickness
            water curable liquid applied, coal tar free, urethane/polyurea   •  Economical
            roofing and waterproofing membrane system for vertical
            and horizontal surfaces. The coating may be applied in the   •  Fast Curing
            field from 30 to 2500 mils (0.076 -6.35 cm) in one application   •  Highly Flexible Over Extreme Temperatures
            while supplying simultaneous curing throughout the coating.
            The system may be applied as one or two applications of   •  Labor Saving
            Polycoat-Aquaseal   5000 WC/GC when heavily reinforced
                            ™
            with Tie-Tex 326 Fabric. The System is capable of correcting   •  Low Odor
            negative slope, filling pond areas and creating moderate   •  Meets the Criteria of ASTM C-836 and E-96
            positive slope to drain. Polycoat-Aquaseal   5000 GC (Green
                                               ™
            Concrete) is available in horizontal (GC-H), vertical (GC-V), or   •  Resistant to Bacteria
            spray gun (GC-SG).                                      •  User Friendly
            Color                                                 Typical Uses
            Black
                                                                    •  Basements             •  Modified Cap Sheets
            Coverage
            Polycoat-Aquaseal   5000 WC/GC System should yield a    •  Between Slabs         •  Planters
                            ™
            minimum 60 mils (1524 microns) thickness in one or two   •  Bridges              •  Terrazzo and Tile Floors
            coats without fabric. Systems with a total of 100 mils (0.25
            cm) with the Tie-Tex 326 Fabric will require 45 mils (0.11 cm) of   •  Foundation Walls  •  Tunnels
            base membrane and 45 mils (0.11 cm) of topcoat membrane.   •  Green Roof         •  Under Malls, Plazas and
            Systems with a total of 150 mils (0.38 cm) will require a base   Waterproofing     Promenade Decks
            membrane of 70 mils (0.18 cm) and a topcoat membrane
            of 70 mils (0.18 cm) with the Tie-Tex 326 Fabric sandwiched   •  I.R.M.A. Roofing
            between coats.
            Surface Preparation                                   Packaging
            Refer to General Guidelines for complete information.
                                                                   5-Gallon         5 gallon (18.9 liter) pail
            Joints, Cracks and Flashing:
            Apply a stripe coat of Polycoat-Aquaseal  5000 WC/GC over   55-Gallon   55 gallon drum, net fill 50 gallons (189
                                              ™
            all cracks up to 1/16” (1.58 mm) width. All cracks over 1/16”           liters)
            (1.58 mm) width must be caulked with a polyurethane sealant.
            All metal flashings must be primed with manufacturer’s
            recommended primer.


             Technical Data (Based on Draw Down Film) Polycoat-Aquaseal  5000 WC/GC Properties
                                                            ™
                                                   AQUASEAL          AQUASEAL         AQUASEAL          AQUASEAL
                                                    5000WC         5000 WC/GC-H      5000 WC/GC-V     5000 WC/GC-SG
             Hardness, ASTM D2240                    30 ± 5 Shore A    30 ± 5 Shore A   30 ± 5 Shore A    30 ± 5 Shore A
             Tear Resistance, Die C, ASTM D624          70 ± 20 pli       80 ± 15 pli     100 ± 15 pli      100 ± 20 pli
                                                     9.3 ± 2.6 kN/m    14 ± 2.6 kN/m    17.5 ± 2.6 kN/m  17.5 ± 2.6 kN/m
             Tensile Strength, ASTM D412               350 ± 50 psi     350 ± 50 psi      350 ± 50 psi      350 ± 50 psi
                                                     2.41 ± 0.3 MPa    2.41 ± 0.3 MPa   2.41 ± 0.3 MPa    2.41 ± 0.3 MPa
             Ultimate Elongation, ASTM D412             500 ± 50%        550 ± 50%         550 ± 50%         550 ± 50%
             Specific Gravity                            1.20 ± 0.3       1.20 ± 0.3        1.19 ± 0.3       1.18 ± 0.3
             Total Solids by Weight, ASTM D2369          95 ± 3%           96 ± 3%           96 ± 3%          89 ± 3%
             Total Solids by Volume, ASTM D2697          94 ± 3%           95 ± 3%           95 ± 3%          88 ± 3%
             Viscosity at 80°F (27°C)               3000 ± 1500 cps   3500 ± 1000 cps  30,000 ± 5000 cps  17,000 ± 5000 cps
             Volatile Organic Compounds, ASTM D2369-81  <0.42 lb/gal,   <0.42 lb/gal,     <0.42 lb/gal,    <0.83 lb/gal,
                                                       <50 gm/liter     <50 gm/liter      <50 gm/liter     <100 gm/liter
             Service Temperature                      -25°F to 150°F   -25°F to 150°F    -25°F to 150°F   -25°F to 150°F
                                                     -31.7°C to 65°C   -31.7°C to 65°C  -31.7°C to 65°C   -31.7°C to 65°C
