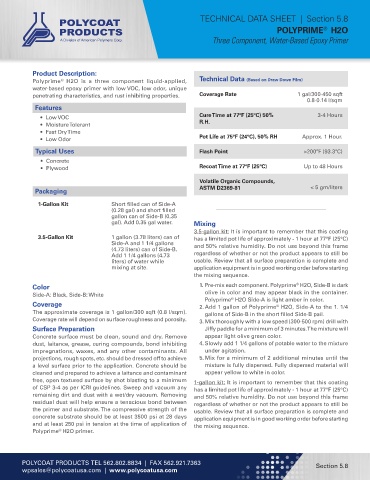

TECHNICAL DATA SHEET  |  Section 5.8
                                                                                             POLYPRIME  H2O
                                                                                                            ®
                                                                       Three Component, Water-Based Epoxy Primer





            Product Description:
            Polyprime  H2O is a three component liquid-applied,    Technical Data (Based on Draw Down Film)
                     ®
            water-based epoxy primer with low VOC, low odor, unique
            penetrating characteristics, and rust inhibiting properties.  Coverage Rate            1 gal/300-450 sqft
                                                                                                       0.8-0.14 l/sqm
             Features

              •  Low VOC                                           Cure Time at 77ºF (25ºC) 50%           3-4 Hours
              •  Moisture Tolerant                                 R.H.
              •  Fast Dry Time
              •  Low Odor                                          Pot Life at 75ºF (24ºC), 50% RH   Approx. 1 Hour.
             Typical Uses                                          Flash Point                        >200ºF (93.3ºC)
               •  Concrete
               •  Plywood                                          Recoat Time at 77ºF (25ºC)         Up to 48 Hours

                                                                   Volatile Organic Compounds,
             Packaging                                             ASTM D2369-81                        < 5 gm/liters
              1-Gallon Kit            Short filled can of Side-A
                                      (0.28 gal) and short filled
                                      gallon can of Side-B (0.35
                                      gal). Add 0.35 gal water.  Mixing
                                                                 3.5-gallon kit: It is important to remember that this coating
              3.5-Gallon Kit          1 gallon (3.78 liters) can of   has a limited pot life of approximately - 1 hour at 77°F (25°C)
                                      Side-A and 1 1/4 gallons   and 50% relative humidity. Do not use beyond this frame
                                      (4.73 liters) can of Side-B.
                                      Add 1 1/4 gallons (4.73    regardless of whether or not the product appears to still be
                                      liters) of water while     usable. Review that all surface preparation is complete and
                                      mixing at site.            application equipment is in good working order before starting
                                                                 the mixing sequence.
                                                                                                   ®
            Color                                                  1. Pre-mix each component. Polyprime  H2O, Side-B is dark
            Side-A: Black, Side-B: White                             olive in color and may appear black in the container.
                                                                     Polyprime  H2O Side-A is light amber in color.
                                                                             ®
            Coverage                                               2. Add 1 gallon of Polyprime  H2O, Side-A to the 1. 1/4
                                                                                            ®
            The approximate coverage is 1 gallon/300 sqft (0.8 l/sqm).   gallons of Side-B in the short filled Side-B pail.
            Coverage rate will depend on surface roughness and porosity.  3. Mix thoroughly with a low speed (300-500 rpm) drill with
            Surface Preparation                                      Jiffy paddle for a minimum of 3 minutes. The mixture will
            Concrete surface must be clean, sound and dry. Remove    appear light olive green color.
            dust, laitance, grease, curing compounds, bond inhibiting   4. Slowly add 1 1/4 gallons of potable water to the mixture
            impregnations, waxes, and any other contaminants. All    under agitation.
            projections, rough spots, etc. should be dressed off to achieve   5. Mix for a minimum of 2 additional minutes until the
            a level surface prior to the application. Concrete should be   mixture is fully dispersed. Fully dispersed material will
            cleaned and prepared to achieve a laitance and contaminant   appear yellow to white in color.
            free, open textured surface by shot blasting to a minimum   1-gallon kit: It is important to remember that this coating
            of CSP 3-4 as per ICRI guidelines. Sweep and vacuum any   has a limited pot life of approximately - 1 hour at 77°F (25°C)
            remaining dirt and dust with a wet/dry vacuum. Removing   and 50% relative humidity. Do not use beyond this frame
            residual dust will help ensure a tenacious bond between   regardless of whether or not the product appears to still be
            the primer and substrate. The compressive strength of the   usable. Review that all surface preparation is complete and
            concrete substrate should be at least 3500 psi at 28 days   application equipment is in good working order before starting
            and at least 250 psi in tension at the time of application of   the mixing sequence.
                    ®
            Polyprime  H2O primer.
