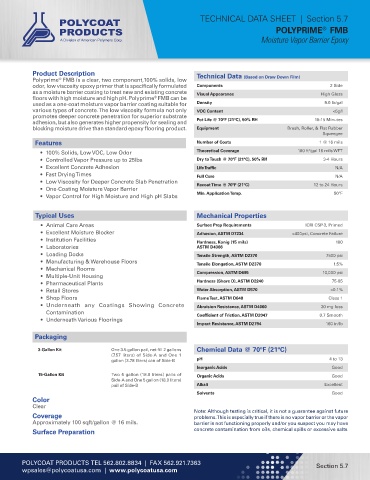

TECHNICAL DATA SHEET | Section 5.7
POLYPRIME FMB
®
Moisture Vapor Barrier Epoxy

Product Description
Polyprime FMB is a clear, two component,100% solids, low Technical Data (Based on Draw Down Film)
®
odor, low viscosity epoxy primer that is specifically formulated Components 2 Side
as a moisture barrier coating to treat new and existing concrete Visual Appearance High Gloss
floors with high moisture and high pH. Polyprime FMB can be
®
used as a one-coat moisture vapor barrier coating suitable for Density 9.0 lb/gal
various types of concrete. The low viscosity formula not only VOC Content <5g/l
promotes deeper concrete penetration for superior substrate
adhesion, but also generates higher propensity for sealing and Pot Life @ 70ºF (21ºC), 50% RH 10-15 Minutes
blocking moisture drive than standard epoxy flooring product. Equipment Brush, Roller, & Flat Rubber
Squeegee
Features Number of Coats 1 @ 16 mils
2
• 100% Solids, Low VOC, Low Odor Theoretical Coverage 100 ft /gal 16 mils WFT
• Controlled Vapor Pressure up to 25lbs Dry to Touch @ 70ºF (21ºC), 50% RH 3-4 Hours
• Excellent Concrete Adhesion Life Traffic N/A
• Fast Drying Times Full Cure N/A
• Low Viscosity for Deeper Concrete Slab Penetration Recoat Time @ 70ºF (21ºC) 12 to 24 Hours
• One-Coating Moisture Vapor Barrier
• Vapor Control for High Moisture and High pH Slabs Min. Application Temp. 50ºF

Typical Uses Mechanical Properties
• Animal Care Areas Surface Prep Requirements ICRI CSP-3, Primed
• Excellent Moisture Blocker Adhesion, ASTM D7234 >400psi, Concrete Failure
• Institution Facilities Hardness, Konig (15 mils) 100
• Laboratories ASTM D4366
• Loading Docks Tensile Strength, ASTM D2370 7500 psi
• Manufacturing & Warehouse Floors Tensile Elongation, ASTM D2370 1.5%
• Mechanical Rooms
• Multiple-Unit Housing Compression, ASTM D695 10,000 psi
• Pharmaceutical Plants Hardness (Shore D), ASTM D2240 75-85
• Retail Stores Water Absorption, ASTM D570 <0.1%
• Shop Floors Flame Test, ASTM D648 Class 1
• Underneath any Coatings Showing Concrete Abraision Resistance, ASTM D4060 30 mg loss
Contamination Coefficient of Friction, ASTM D2047 0.7 Smooth
• Underneath Various Floorings
Impact Resistance, ASTM D2794 160 in/lb

Packaging

3-Gallon Kit One 3.5 gallon pail, net fill 2 gallons Chemical Data @ 70ºF (21ºC)
(7.57 liters) of Side-A and One 1
gallon (3.78 liters) can of Side-B pH 4 to 13
Inorganic Acids Good
15-Gallon Kit Two 5 gallon (18.9 liters) pails of Organic Acids Good
Side-A and One 5 gallon (18.9 liters)
pail of Side-B Alkali Excellent
Solvents Good
Color
Clear
Note: Although testing is critical, it is not a guarantee against future
Coverage problems. This is especially true if there is no vapor barrier or the vapor
Approximately 100 sqft/gallon @ 16 mils. barrier is not functioning properly and/or you suspect you may have
Surface Preparation concrete contamination from oils, chemical spills or excessive salts
