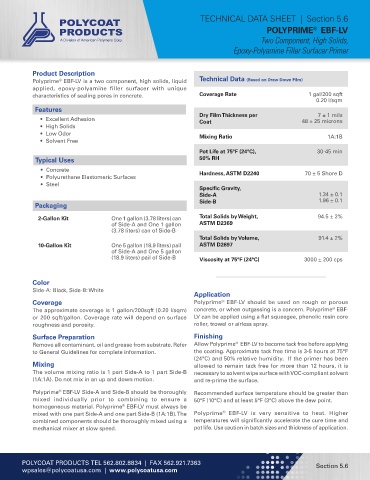

TECHNICAL DATA SHEET  |  Section 5.6
                                                                                         POLYPRIME  EBF-LV
                                                                                                         ®
                                                                                       Two Component, High Solids,
                                                                              Epoxy-Polyamine Filler Surfacer Primer



            Product Description
            Polyprime  EBF-LV is a two component, high solids, liquid   Technical Data (Based on Draw Down Film)
                     ®
            applied, epoxy-polyamine filler surfacer with unique
            characteristics of sealing pores in concrete.          Coverage Rate                       1 gal/200 sqft
                                                                                                          0.20 l/sqm
             Features
                                                                   Dry Film Thickness per                 7 ± 1 mils
              •  Excellent Adhesion                                Coat                              48 ± 25 microns
              •  High Solids
              •  Low Odor                                          Mixing Ratio                              1A:1B
              •  Solvent Free

                                                                   Pot Life at 75ºF (24ºC),               30-45 min
             Typical Uses                                          50% RH
               •  Concrete                                         Hardness, ASTM D2240               70 ± 5 Shore D
               •  Polyurethane Elastomeric Surfaces
               •  Steel
                                                                   Specific Gravity,
                                                                   Side-A                                 1.34 ± 0.1
                                                                   Side-B                                 1.96 ± 0.1
             Packaging
              2-Gallon Kit            One 1 gallon (3.78 liters) can   Total Solids by Weight,            94.5 ± 2%
                                      of Side-A and One 1 gallon   ASTM D2369
                                      (3.78 liters) can of Side-B
                                                                   Total Solids by Volume,                91.4 ± 2%
              10-Gallon Kit           One 5 gallon (18.9 liters) pail   ASTM D2697
                                      of Side-A and One 5 gallon
                                      (18.9 liters) pail of Side-B  Viscosity at 75°F (24°C)          3000 ± 200 cps




            Color
            Side-A: Black, Side-B: White
                                                                 Application
            Coverage                                             Polyprime  EBF-LV should be used on rough or porous
                                                                          ®
            The approximate coverage is 1 gallon/200sqft (0.20 l/sqm)   concrete, or when outgassing is a concern. Polyprime  EBF-
                                                                                                               ®
            or 200 sqft/gallon. Coverage rate will depend on surface   LV can be applied using a flat squeegee, phenolic resin core
            roughness and porosity.                              roller, trowel or airless spray.
            Surface Preparation                                  Finishing
            Remove all contaminant, oil and grease from substrate. Refer   Allow Polyprime   EBF-LV to become tack free before applying
                                                                               ®
            to General Guidelines for complete information.      the coating. Approximate tack free time is 3-5 hours at 75°F
                                                                 (24°C) and 50% relative humidity.  If the primer has been
            Mixing                                               allowed to remain tack free for more than 12 hours, it is
            The volume mixing ratio is 1 part Side-A to 1 part Side-B   necessary to solvent wipe surface with VOC-compliant solvent
            (1A:1A). Do not mix in an up and down motion.        and re-prime the surface.
            Polyprime  EBF-LV Side-A and Side-B should be thoroughly   Recommended surface temperature should be greater than
                    ®
            mixed individually prior to combining to ensure a    50°F (10°C) and at least 5°F (3°C) above the dew point.
            homogeneous material. Polyprime  EBF-LV must always be
                                         ®
            mixed with one part Side-A and one part Side-B (1A:1B). The   Polyprime  EBF-LV is very sensitive to heat. Higher
                                                                           ®
            combined components should be thoroughly mixed using a   temperatures will significantly accelerate the cure time and
            mechanical mixer at slow speed.                      pot life. Use caution in batch sizes and thickness of application.
