Page 36 - tmp
P. 36

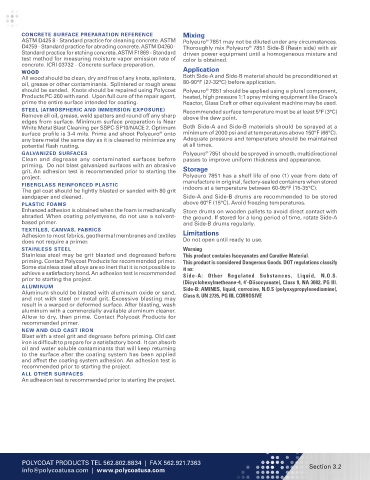

CONCRETE SURFACE PREPARATION REFERENCE                Mixing
        ASTM D425 8 - Standard practice for cleaning concrete. ASTM   Polyeuro  7851 may not be diluted under any circumstances.
                                                                     ®
        D4259 - Standard practice for abrading concrete. ASTM D4260 -   Thoroughly mix Polyeuro  7851 Side-B (Resin side) with air
                                                                                   ®
        Standard practice for etching concrete. ASTM F1869 - Standard   driven power equipment until a homogeneous mixture and
        test method for measuring moisture vapor emission rate of   color is obtained.
        concrete. ICRI 03732 - Concrete surface preparation.
        WOOD                                                  Application
        All wood should be clean, dry and free of any knots, splinters,   Both Side-A and Side-B material should be preconditioned at
        oil, grease or other contaminants.  Splintered or rough areas   80-90°F (27-32°C) before application.
        should be sanded.  Knots should be repaired using Polycoat   Polyeuro  7851 should be applied using a plural component,
                                                                     ®
        Products PC-260 with sand.  Upon full cure of the repair agent,   heated, high pressure 1:1 spray mixing equipment like Graco’s
        prime the entire surface intended for coating.        Reactor, Glass Craft or other equivalent machine may be used.
        STEEL (ATMOSPHERIC AND IMMERSION EXPOSURE)            Recommended surface temperature must be at least 5°F (3°C)
        Remove all oil, grease, weld spatters and round off any sharp   above the dew point.
        edges from surface. Minimum surface preparation is Near
        White Metal Blast Cleaning per SSPC-SP10/NACE 2. Optimum   Both Side-A and Side-B materials should be sprayed at a
        surface profile is 3-4 mils. Prime and shoot Polyeuro  onto   minimum of 2000 psi and at temperatures above 150°F (66°C).
                                                      ®
        any bare metal the same day as it is cleaned to minimize any   Adequate pressure and temperature should be maintained
        potential flash rusting.                              at all times.
        GALVANIZED SURFACES                                   Polyeuro  7851 should be sprayed in smooth, multidirectional
                                                                     ®
        Clean and degrease any contaminated surfaces before   passes to improve uniform thickness and appearance.
        priming.  Do not blast galvanized surfaces with an abrasive
        grit. An adhesion test is recommended prior to starting the   Storage
        project.                                              Polyeuro 7851 has a shelf life of one (1) year from date of
        FIBERGLASS REINFORCED PLASTIC                         manufacture in original, factory-sealed containers when stored
                                                              indoors at a temperature between 60-95°F (15-35°C).
        The gel coat should be lightly blasted or sanded with 80 grit
        sandpaper and cleaned.                                Side-A and Side-B drums are recommended to be stored
        PLASTIC FOAMS                                         above 60°F (15°C). Avoid freezing temperatures.
        Enhanced adhesion is obtained when the foam is mechanically   Store drums on wooden pallets to avoid direct contact with
        abraded. When coating polystyrene, do not use a solvent-  the ground. If stored for a long period of time, rotate Side-A
        based primer.                                         and Side-B drums regularly.
        TEXTILES, CANVAS, FABRICS
        Adhesion to most fabrics, geothermal membranes and textiles   Limitations
        does not require a primer.                            Do not open until ready to use.
        STAINLESS STEEL                                       Warning
        Stainless steel may be grit blasted and degreased before   This product contains Isocyanates and Curative Material.
        priming. Contact Polycoat Products for recommended primer.     This product is considered Dangerous Goods. DOT regulations classify
        Some stainless steel alloys are so inert that it is not possible to   it as:
        achieve a satisfactory bond. An adhesion test is recommended   Side-A:  Other Regulated Substances, Liquid,  N.O.S.
        prior to starting the project.                        (Dicyclohexylmetheane-4, 4’-Diisocyanate), Class 9, NA 3082, PG III.
        ALUMINUM                                              Side-B: AMINES, liquid, corrosive, N.O.S (polyoxypropylenediamine),
        Aluminum should be blasted with aluminum oxide or sand,   Class 8, UN 2735, PG III, CORROSIVE
        and not with steel or metal grit. Excessive blasting may
        result in a warped or deformed surface. After blasting, wash
        aluminum with a commercially available aluminum cleaner.
        Allow to dry, then prime. Contact Polycoat Products for
        recommended primer.
        NEW AND OLD CAST IRON
        Blast with a steel grit and degrease before priming. Old cast
        iron is difficult to prepare for a satisfactory bond.  It can absorb
        oil and water soluble contaminants that will keep returning
        to the surface after the coating system has been applied
        and affect the coating system adhesion. An adhesion test is
        recommended prior to starting the project.
        ALL OTHER SURFACES
        An adhesion test is recommended prior to starting the project.















        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                        Section 3.2
        info@polycoatusa.com  |  www.polycoatusa.com
   31   32   33   34   35   36   37   38   39   40   41
