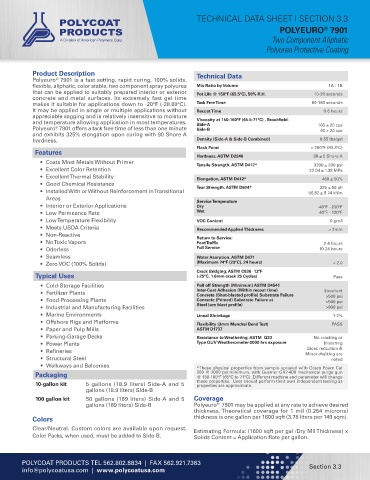

TECHNICAL DATA SHEET I SECTION 3.3
                                                                                              POLYEURO  7901
                                                                                                            ®
                                                                                           Two Component Aliphatic
                                                                                         Polyurea Protective Coating



            Product Description                                   Technical Data
            Polyeuro  7901 is a fast setting, rapid curing, 100% solids,
                   ®
            flexible, aliphatic, color stable, two component spray polyurea   Mix Ratio by Volume             1A : 1B
            that can be applied to suitably prepared interior or exterior   Pot Life @ 150ºF (65.5ºC), 50% R.H.  10-20 seconds
            concrete and metal surfaces. Its extremely fast gel time
            makes it suitable for applications down to -20°F (-28.89°C).   Tack Free Time               60-180 seconds
            It may be applied in single or multiple applications without   Recoat Time                      0-6 hours
            appreciable sagging and is relatively insensitive to moisture
            and temperature allowing application in most temperatures.   Viscosity at 150-160ºF (65.5-71ºC) , Brookfield:
                                                                  Side-A
            Polyeuro  7901 offers a tack free time of less than one minute   Side-B                       160 ± 20 cps
                   ®
                                                                                                           40 ± 20 cps
            and exhibits 325% elongation upon curing with 90 Shore A
            hardness.                                             Density (Side-A & Side-B Combined)       8.55 lbs/gal
                                                                  Flash Point                           > 200°F (93.3°C)
             Features
                                                                  Hardness, ASTM D2240                   90 ± 5 Shore A
              •  Coats Most Metals Without Primer                 Tensile Strength, ASTM D412*           3200 ± 200 psi
              •  Excellent Color Retention                                                             22.04 ± 1.38 MPa
              •  Excellent Thermal Stability                      Elongation, ASTM D412*                    450 ± 50%
              •  Good Chemical Resistance
                                                                                                           325 ± 50 pli
              •  Installed With or Without Reinforcement in Transitional   Tear Strength, ASTM D624*   56.82 ± 8.74 kNm
                Areas
              •  Interior or Exterior Applications                Service Temperature                     -40ºF - 250ºF
                                                                  Dry
              •  Low Permeance Rate                               Wet                                      40ºF - 120ºF
              •  Low Temperature Flexibility                      VOC Content                                 0 gm/l
              •  Meets USDA Criteria                              Recommended Applied Thickness               > 2mm
              •  Non-Reactive                                     Return to Service:
              •  No Toxic Vapors                                  Foot Traffic                              2-4 hours
              •  Odorless                                         Full Service                             10-24 hours
              •  Seamless                                         Water Asorption, ASTM D471
              •  Zero VOC (100% Solids)                           (Maximum 74ºF (23ºC), 24 hours)              < 2.0
                                                                  Crack Bridging, ASTM C836 -13ºF
             Typical Uses                                         (-25ºC, 1.6mm crack 25 Cycles)               Pass
               •  Cold-Storage Facilities                         Pull off Strength (Minimum) ASTM D4541
               •  Fertilizer Plants                               Inter-Coat Adhesion (Within recoat time)  Excellent
                                                                  Concrete (Shot-blasted profile) Substrate Failure
                                                                                                             >500 psi
               •  Food-Processing Plants                          Concrete (Primed) Substrate Failure at     >500 psi
               •  Industrial and Manufacturing Facilities         Steel (um blast profile)                   >900 psi
               •  Marine Environments                             Lineal Shrinkage                             1-2%
               •  Offshore Rigs and Platforms                     Flexibility (3mm Mendrel Bend Test)          PASS
               •  Paper and Pulp Mills                            ASTM D1737
               •  Parking-Garage Decks                            Resistance to Weathering, ASTM  G23    No cracking or
               •  Power Plants                                    Type QUV Weatherometer-2000 hrs exposure  blistering
                                                                                                      Gloss reduction &
               •  Refineries                                                                          Minor chalking are
               •  Structural Steel                                                                             noted
               •  Walkways and Balconies                          *These physical properties from sample sprayed with Graco Foam Cat
             Packaging                                            200 @ 2000 psi minimum, with Gusmer GX7-400 mechanical purge gun
                                                                  @ 150-160°F (65°C to 71°C). Different machine and parameter will change
             10-gallon kit   5 gallons (18.9 liters) Side-A and 5   these properties.  User should perform their own independent testing as
                                                                  properties are approximate.
                             gallons (18.9 liters) Side-B
             100 gallon kit  50 gallons (189 liters) Side-A and 5   Coverage
                             gallons (189 liters) Side-B         Polyeuro   7901 may be applied at any rate to achieve desired
                                                                         ®
                                                                 thickness. Theoretical coverage for 1 mil (0.254 microns)
            Colors                                               thickness is one gallon per 1600 sqft (3.78 liters per 149 sqm).
            Clear/Neutral. Custom colors are available upon request.     Estimating Formula: (1600 sqft per gal /Dry Mil Thickness) x
            Color Packs, when used, must be added to Side-B.     Solids Content = Application Rate per gallon.




        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                        Section 3.3
        info@polycoatusa.com  |  www.polycoatusa.com
