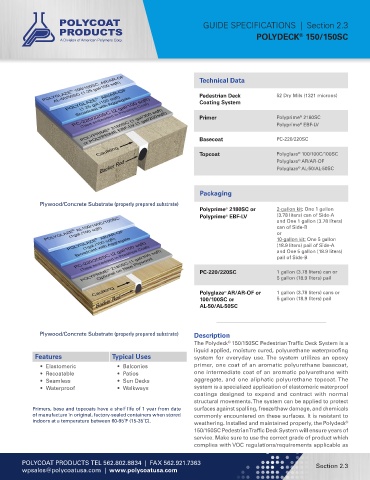

Page 23 - Polycoat 1.1 Table of Contents
P. 23

GUIDE SPECIFICATIONS  |  Section 2.3
                                                                                      POLYDECK  150/150SC
                                                                                                    ®







                                                                   Technical Data

                                                                   Pedestrian Deck           52 Dry Mils (1321 microns)
                                                                   Coating System


                                                                                                    ®
                                                                   Primer                    Polyprime  2180SC
                                                                                                    ®
                                                                                             Polyprime  EBF-LV
                                                                   Basecoat                  PC-220/220SC

                                                                                                    ®
                                                                   Topcoat                   Polyglaze  100/100C/100SC
                                                                                             Polyglaze  AR/AR-OF
                                                                                                    ®
                                                                                                    ®
                                                                                             Polyglaze  AL-50/AL-50SC

                                                                   Packaging
              Plywood/Concrete Substrate (properly prepared substrate)
                                                                   Polyprime  2180SC or      2-gallon kit: One 1 gallon
                                                                            ®
                                                                   Polyprime  EBF-LV         (3.78 liters) can of Side-A
                                                                            ®
                                                                                             and One 1 gallon (3.78 liters)
                                                                                             can of Side-B
                                                                                             or
                                                                                             10-gallon kit: One 5 gallon
                                                                                             (18.9 liters) pail of Side-A
                                                                                             and One 5 gallon (18.9 liters)
                                                                                             pail of Side-B


                                                                   PC-220/220SC              1 gallon (3.78 liters) can or
                                                                                             5 gallon (18.9 liters) pail

                                                                   Polyglaze  AR/AR-OF or    1 gallon (3.78 liters) cans or
                                                                           ®
                                                                   100/100SC or              5 gallon (18.9 liters) pail
                                                                   AL-50/AL-50SC



              Plywood/Concrete Substrate (properly prepared substrate)  Description
                                                                 The Polydeck  150/150SC Pedestrian Traffic Deck System is a
                                                                            ®
                                                                 liquid applied, moisture cured, polyurethane waterproofing
             Features                 Typical Uses               system for everyday use. The system utilizes an epoxy
              •  Elastomeric            •  Balconies             primer, one coat of an aromatic polyurethane basecoat,
              •  Recoatable             •  Patios                one intermediate coat of an aromatic polyurethane with
              •  Seamless               •  Sun Decks             aggregate, and one aliphatic polyurethane topcoat. The
              •  Waterproof             •  Walkways              system is a specialized application of elastomeric waterproof
                                                                 coatings designed to expand and contract with normal
                                                                 structural movements. The system can be applied to protect
            Primers, base and topcoats have a shelf life of 1 year from date   surfaces against spalling, freeze/thaw damage, and chemicals
            of manufacture in original, factory-sealed containers when stored   commonly encountered on these surfaces. It is resistant to
            indoors at a temperature between 60-95˚F (15-35˚C).  weathering. Installed and maintained properly, the Polydeck
                                                                                                                   ®
                                                                 150/150SC Pedestrian Traffic Deck System will ensure years of
                                                                 service. Make sure to use the correct grade of product which
                                                                 complies with VOC regulations/requirements applicable as
