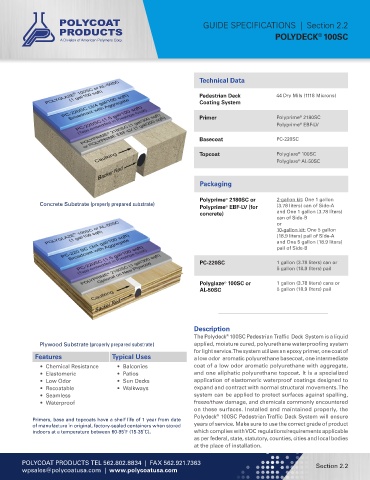

Page 19 - Polycoat 1.1 Table of Contents
P. 19

GUIDE SPECIFICATIONS  |  Section 2.2
                                                                                            POLYDECK 100SC
                                                                                                          ®







                                                                   Technical Data

                                                                   Pedestrian Deck           44 Dry Mils (1118 Microns)
                                                                   Coating System


                                                                                                    ®
                                                                   Primer                    Polyprime  2180SC
                                                                                             Polyprime  EBF-LV
                                                                                                    ®
                                                                   Basecoat                  PC-220SC

                                                                                                    ®
                                                                   Topcoat                   Polyglaze  100SC
                                                                                                    ®
                                                                                             Polyglaze  AL-50SC

                                                                   Packaging

                                                                   Polyprime  2180SC or      2-gallon kit: One 1 gallon
                                                                            ®
              Concrete Substrate (properly prepared substrate)
                                                                   Polyprime  EBF-LV (for    (3.78 liters) can of Side-A
                                                                            ®
                                                                   concrete)                 and One 1 gallon (3.78 liters)
                                                                                             can of Side-B
                                                                                             or
                                                                                             10-gallon kit: One 5 gallon
                                                                                             (18.9 liters) pail of Side-A
                                                                                             and One 5 gallon (18.9 liters)
                                                                                             pail of Side-B

                                                                   PC-220SC                  1 gallon (3.78 liters) can or
                                                                                             5 gallon (18.9 liters) pail

                                                                   Polyglaze  100SC or       1 gallon (3.78 liters) cans or
                                                                           ®
                                                                   AL-50SC                   5 gallon (18.9 liters) pail





                                                                 Description
                                                                            ®
                                                                 The Polydeck  100SC Pedestrian  Traffic  Deck  System is a liquid
              Plywood Substrate (properly prepared substrate)    applied, moisture cured, polyurethane waterproofing system
                                                                 for light service. The system utilizes an epoxy primer, one coat of
             Features                 Typical Uses               a low odor  aromatic polyurethane basecoat, one intermediate
              •  Chemical Resistance    •  Balconies             coat of a low odor aromatic polyurethane with aggregate,
              •  Elastomeric            •  Patios                and one aliphatic polyurethane topcoat. It is a specialized
              •  Low Odor               •  Sun Decks             application of elastomeric waterproof coatings designed to
              •  Recoatable             •  Walkways              expand and contract with normal structural movements. The
              •  Seamless                                        system can be applied to protect surfaces against spalling,
              •  Waterproof                                      freeze/thaw damage, and chemicals commonly encountered
                                                                 on these surfaces. Installed and maintained properly, the
                                                                 Polydeck  100SC Pedestrian Traffic Deck System will ensure
                                                                         ®
            Primers, base and topcoats have a shelf life of 1 year from date
            of manufacture in original, factory-sealed containers when stored   years of service. Make sure to use the correct grade of product
            indoors at a temperature between 60-95˚F (15-35˚C).  which complies with VOC regulations/requirements applicable
                                                                 as per federal, state, statutory, counties, cities and local bodies
                                                                 at the place of installation.
