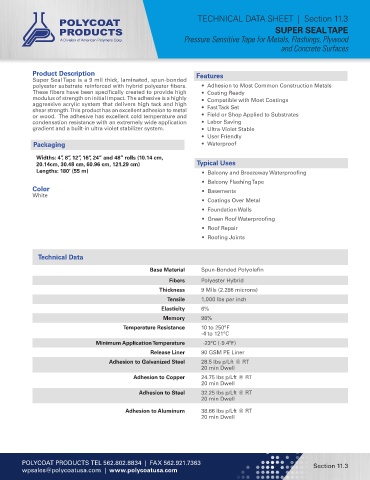

TECHNICAL DATA SHEET  |  Section 11.3
                                                                                            SUPER SEAL TAPE
                                                              Pressure Sensitive Tape for Metals, Flashings, Plywood
                                                                                              and Concrete Surfaces



            Product Description                                   Features
            Super Seal Tape is a 9 mil thick, laminated, spun-bonded
            polyester substrate reinforced with hybrid polyester fibers.     •  Adhesion to Most Common Construction Metals
            These fibers have been specifically created to provide high   •  Coating Ready
            modulus of strength on initial impact.  The adhesive is a highly   •  Compatible with Most Coatings
            aggressive acrylic system that delivers high tack and high
            shear strength. This product has an excellent adhesion to metal   •  Fast Tack Set
            or wood.  The adhesive has excellent cold temperature and   •  Field or Shop Applied to Substrates
            condensation resistance with an extremely wide application   •  Labor Saving
            gradient and a built-in ultra violet stabilizer system.  •  Ultra-Violet Stable
                                                                    •  User Friendly
            Packaging                                               •  Waterproof

                        ,
                               ,
                           ,
                      ,
             Widths: 4” 8” 12” 16” 24” and 48” rolls (10.14 cm,
             20.14cm, 30.48 cm, 60.96 cm, 121.29 cm)              Typical Uses
             Lengths: 180’ (55 m)                                   •  Balcony and Breezeway Waterproofing
                                                                    •  Balcony Flashing Tape
            Color                                                   •  Basements
            White
                                                                    •  Coatings Over Metal
                                                                    •  Foundation Walls
                                                                    •  Green Roof Waterproofing
                                                                    •  Roof Repair
                                                                    •  Roofing Joints


              Technical Data

                                                   Base Material    Spun-Bonded Polyolefin
                                                         Fibers     Polyester Hybrid
                                                      Thickness     9 Mils (2.286 microns)
                                                        Tensile     1,000 lbs per inch
                                                      Elasticity    6%
                                                       Memory       98%
                                          Temperature Resistance    10 to 250°F
                                                                    -4 to 121°C
                                 Minimum Application Temperature     -23°C (-9.4ºF)
                                                   Release Liner    90 GSM PE Liner
                                     Adhesion to Galvanized Steel   28.5 lbs p/Lft @ RT
                                                                    20 min Dwell
                                             Adhesion to Copper     24.75 lbs p/Lft @ RT
                                                                    20 min Dwell
                                               Adhesion to Steel    32.25 lbs p/Lft @ RT
                                                                    20 min Dwell
                                           Adhesion to Aluminum     38.66 lbs p/Lft @ RT
                                                                    20 min Dwell








        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 11.3
        wpsales@polycoatusa.com  |  www.polycoatusa.com
