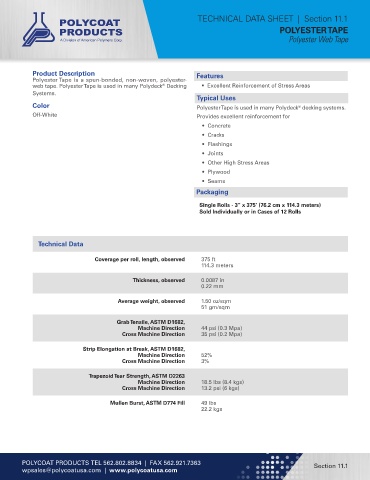

TECHNICAL DATA SHEET | Section 11.1
POLYESTER TAPE
Polyester Web Tape

Product Description Features
Polyester Tape is a spun-bonded, non-woven, polyester-
web tape. Polyester Tape is used in many Polydeck Decking • Excellent Reinforcement of Stress Areas
®
Systems.
Typical Uses
Color Polyester Tape is used in many Polydeck decking systems.
®
Off-White Provides excellent reinforcement for
• Concrete
• Cracks
• Flashings
• Joints
• Other High Stress Areas
• Plywood
• Seams
Packaging

Single Rolls - 3” x 375’ (76.2 cm x 114.3 meters)
Sold Individually or in Cases of 12 Rolls

Technical Data

Coverage per roll, length, observed 375 ft
114.3 meters

Thickness, observed 0.0087 in
0.22 mm

Average weight, observed 1.50 oz/sqm
51 gm/sqm

Grab Tensile, ASTM D1682,
Machine Direction 44 psi (0.3 Mpa)
Cross Machine Direction 35 psi (0.2 Mpa)

Strip Elongation at Break, ASTM D1682,
Machine Direction 52%
Cross Machine Direction 3%

Trapezoid Tear Strength, ASTM D2263
Machine Direction 18.5 lbs (8.4 kgs)
Cross Machine Direction 13.2 psi (6 kgs)

Mullen Burst, ASTM D774 Fill 49 lbs
22.2 kgs

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363 Section 11.1
wpsales@polycoatusa.com | www.polycoatusa.com
