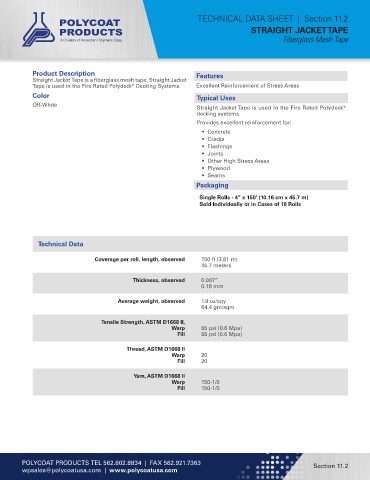

TECHNICAL DATA SHEET  |  Section 11.2
                                                                                    STRAIGHT JACKET TAPE
                                                                                               Fiberglass Mesh Tape





            Product Description                                   Features
            Straight Jacket  Tape is a fiberglass mesh tape. Straight Jacket
            Tape is used in the Fire Rated Polydeck  Decking Systems  Excellent Reinforcement of Stress Areas
                                             ®
            Color                                                 Typical Uses
            Off-White
                                                                  Straight Jacket Tape is used in the Fire Rated Polydeck
                                                                                                                   ®
                                                                  decking systems.
                                                                  Provides excellent reinforcement for:
                                                                    •  Concrete
                                                                    •  Cracks
                                                                    •  Flashings
                                                                    •  Joints
                                                                    •  Other High Stress Areas
                                                                    •  Plywood
                                                                    •  Seams
                                                                  Packaging

                                                                   Single Rolls - 4” x 150’ (10.16 cm x 45.7 m)
                                                                   Sold Individually or in Cases of 18 Rolls







              Technical Data

                                Coverage per roll, length, observed  150 ft (3.81 m)
                                                                    45.7 meters

                                             Thickness, observed    0.007”
                                                                    0.18 mm

                                        Average weight, observed    1.9 oz/sqy
                                                                    64.4 gm/sqm

                                   Tensile Strength, ASTM D1668 ll,
                                                          Warp      85 psi (0.6 Mpa)
                                                            Fill    85 psi (0.6 Mpa)

                                           Thread, ASTM D1668 ll
                                                          Warp      20
                                                            Fill    20

                                             Yarn, ASTM D1668 ll
                                                          Warp      150-1/0
                                                            Fill    150-1/0














        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 11.2
        wpsales@polycoatusa.com  |  www.polycoatusa.com
