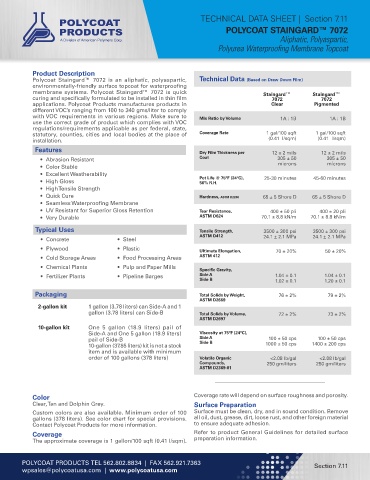

TECHNICAL DATA SHEET |  Section 7.11
                                                                            POLYCOAT STAINGARD™ 7072
                                                                                              Aliphatic, Polyaspartic,
                                                                         Polyurea Waterproofing Membrane Topcoat



            Product Description
            Polycoat Staingard™ 7072 is an aliphatic, polyaspartic,   Technical Data (Based on Draw Down Film)
            environmentally-friendly surface topcoat for waterproofing
            membrane systems. Polycoat Staingard™ 7072 is quick                         Staingard™      Staingard™
            curing and specifically formulated to be installed in thin film                7072            7072
            applications. Polycoat Products manufactures products in                       Clear         Pigmented
            different VOC’s ranging from 100 to 340 gms/liter to comply
            with VOC requirements in various regions. Make sure to   Mix Ratio by Volume      1A : 1B         1A : 1B
            use the correct grade of product which complies with VOC
            regulations/requirements applicable as per federal, state,
            statutory, counties, cities and local bodies at the place of   Coverage Rate  1 gal/100 sqft   1 gal/100 sqft
            installation.                                                                 (0.41  l/sqm)   (0.41  l/sqm)
             Features                                              Dry Film Thickness per   12 ± 2 mils    12 ± 2 mils
              •  Abrasion Resistant                                Coat                      305 ± 50        305 ± 50
              •  Color Stable                                                                microns         microns
              •  Excellent Weatherability
              •  High Gloss                                        Pot Life @ 75ºF (24ºC),   25-30 minutes  45-60 minutes
                                                                   50% R.H.
              •  High Tensile Strength
              •  Quick Cure                                        Hardness, ASTM D2240  65 ± 5 Shore D  65 ± 5 Shore D
              •  Seamless Waterproofing Membrane
              •  UV Resistant for Superior Gloss Retention         Tear Resistance,       400 ± 50 pli     400 ± 20 pli
              •  Very Durable                                      ASTM D624           70.1 ± 8.8 kN/m  70.1 ± 8.8 kN/m
             Typical Uses                                          Tensile Strength,    3500 ± 300 psi   3500 ± 300 psi
                                                                   ASTM D412            24.1 ± 2.1 MPa  24.1 ± 2.1 MPa
               •  Concrete              •  Steel
               •  Plywood               •  Plastic                 Ultimate Elongation,     70 ± 20%         50 ± 20%
               •  Cold Storage Areas    •  Food Processing Areas   ASTM 412
               •  Chemical Plants       •  Pulp and Paper Mills    Specific Gravity,
               •  Fertilizer Plants     •  Pipeline Barges         Side A                   1.04 ± 0.1      1.04 ± 0.1
                                                                   Side B                   1.02 ± 0.1      1.20 ± 0.1

             Packaging                                             Total Solids by Weight,   76 ± 2%         79 ± 2%
                                                                   ASTM D2669
              2-gallon kit    1 gallon (3.78 liters) can Side-A and 1
                              gallon (3.78 liters) can Side-B      Total Solids by Volume,   72 ± 2%         73 ± 2%
                                                                   ASTM D2697
              10-gallon kit   One 5 gallon (18.9 liters) pail of
                              Side-A and One 5 gallon (18.9 liters)   Viscosity at 75°F (24°C),
                              pail of Side-B                       Side A                 100 ± 50 cps    100 ± 50 cps
                                                                   Side B
                              10-gallon (37.85 liters) kit is not a stock                1000 ± 50 cps  1400 ± 200 cps
                              item and is available with minimum
                              order of 100 gallons (378 liters)    Volatile Organic       <2.08 lb/gal     <2.08 lb/gal
                                                                   Compounds,            250 gm/liters    250 gm/liters
                                                                   ASTM D2369-81




            Color                                                Coverage rate will depend on surface roughness and porosity.
            Clear, Tan and Dolphin Grey.                         Surface Preparation
            Custom colors are also available. Minimum order of 100   Surface must be clean, dry, and in sound condition. Remove
            gallons (378 liters). See color chart for special provisions.       all oil, dust, grease, dirt, loose rust, and other foreign material
            Contact Polycoat Products for more information.      to ensure adequate adhesion.
            Coverage                                             Refer to product General Guidelines for detailed surface
            The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm).   preparation information.



        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 7.11
        wpsales@polycoatusa.com  |  www.polycoatusa.com
