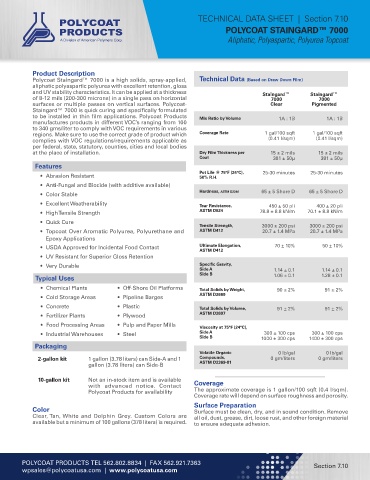

TECHNICAL DATA SHEET  |  Section 7.10
                                                                            POLYCOAT STAINGARD™ 7000
                                                                            Aliphatic, Polyaspartic, Polyurea Topcoat





            Product Description
            Polycoat Staingard™ 7000 is a high solids, spray-applied,   Technical Data (Based on Draw Down Film)
            aliphatic polyaspartic polyurea with excellent retention, gloss
            and UV stability characteristics. It can be applied at a thickness          Staingard™      Staingard™
            of 8-12 mils (200-300 microns) in a single pass on horizontal                  7000           7000
            surfaces or multiple passes on vertical surfaces. Polycoat-                    Clear        Pigmented
            Staingard™ 7000 is quick curing and specifically formulated
            to be installed in thin film applications. Polycoat Products   Mix Ratio by Volume  1A : 1B      1A : 1B
            manufactures products in different VOC’s ranging from 100
            to 340 gms/liter to comply with VOC requirements in various
            regions. Make sure to use the correct grade of product which   Coverage Rate  1 gal/100 sqft   1 gal/100 sqft
            complies with VOC regulations/requirements applicable as                      (0.41 l/sqm)    (0.41 l/sqm)
            per federal, state, statutory, counties, cities and local bodies
            at the place of installation.                          Dry Film Thickness per   15 ± 2 mils   15 ± 2 mils
                                                                   Coat                    381 ± 50µ       381 ± 50µ
             Features
                                                                   Pot Life @ 75ºF (24ºC),   25-30 minutes  25-30 minutes
              •  Abrasion Resistant                                50% R.H.
              •  Anti-Fungal and Biocide (with additive available)
              •  Color Stable                                      Hardness, ASTM D2240  65 ± 5 Shore D  65 ± 5 Shore D
              •  Excellent Weatherability                          Tear Resistance,       450 ± 50 pli    400 ± 20 pli
              •  High Tensile Strength                             ASTM D624           78.8 ± 8.8 kN/m  70.1 ± 8.8 kN/m
              •  Quick Cure
                                                                   Tensile Strength,    3000 ± 200 psi  3000 ± 200 psi
              •  Topcoat Over Aromatic Polyurea, Polyurethane and   ASTM D412           20.7 ± 1.4 MPa  20.7 ± 1.4 MPa
                Epoxy Applications
              •  USDA Approved for Incidental Food Contact         Ultimate Elongation,     70 ± 10%        50 ± 10%
                                                                   ASTM D412
              •  UV Resistant for Superior Gloss Retention
              •  Very Durable                                      Specific Gravity,
                                                                   Side A                   1.14 ± 0.1     1.14 ± 0.1
                                                                   Side B                   1.06 ± 0.1     1.28 ± 0.1
             Typical Uses
               •  Chemical Plants       •  Off-Shore Oil Platforms  Total Solids by Weight,   90 ± 2%       91 ± 2%
               •  Cold Storage Areas    •  Pipeline Barges         ASTM D2669
               •  Concrete              •  Plastic                 Total Solids by Volume,   91 ± 2%        91 ± 2%
               •  Fertilizer Plants     •  Plywood                 ASTM D2697
               •  Food Processing Areas  •  Pulp and Paper Mills   Viscosity at 75°F (24°C),
               •  Industrial Warehouses  •  Steel                  Side A               300 ± 100 cps   300 ± 100 cps
                                                                   Side B              1000 ± 300 cps  1400 ± 300 cps
             Packaging
                                                                   Volatile Organic          0 lb/gal        0 lb/gal
              2-gallon kit    1 gallon (3.78 liters) can Side-A and 1   Compounds,         0 gm/liters    0 gm/liters
                              gallon (3.78 liters) can Side-B      ASTM D2369-81

              10-gallon kit   Not an in-stock item and is available
                              with advanced notice. Contact      Coverage
                              Polycoat Products for availability  The approximate coverage is 1 gallon/100 sqft (0.4 l/sqm).
                                                                 Coverage rate will depend on surface roughness and porosity.
                                                                 Surface Preparation
            Color                                                Surface must be clean, dry, and in sound condition. Remove
            Clear, Tan, White and Dolphin Grey. Custom Colors are   all oil, dust, grease, dirt, loose rust, and other foreign material
            available but a minimum of 100 gallons (378 liters) is required.  to ensure adequate adhesion.







        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 7.10
        wpsales@polycoatusa.com  |  www.polycoatusa.com
