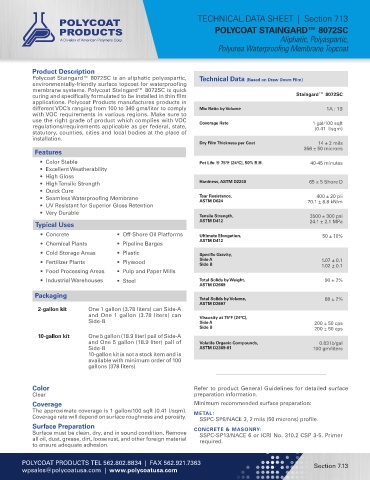

TECHNICAL DATA SHEET  |  Section 7.13
                                                                        POLYCOAT STAINGARD™ 8072SC
                                                                                              Aliphatic, Polyaspartic,
                                                                         Polyurea Waterproofing Membrane Topcoat



            Product Description
            Polycoat Staingard™ 8072SC is an aliphatic polyaspartic,   Technical Data (Based on Draw Down Film)
            environmentally-friendly surface topcoat for waterproofing
            membrane systems. Polycoat Staingard™ 8072SC is quick
            curing and specifically formulated to be installed in thin film                        Staingard™ 8072SC
            applications. Polycoat Products manufactures products in
            different VOC’s ranging from 100 to 340 gms/liter to comply   Mix Ratio by Volume                1A : 1B
            with VOC requirements in various regions. Make sure to
            use the right grade of product which complies with VOC   Coverage Rate                      1 gal/100 sqft
            regulations/requirements applicable as per federal, state,                                   (0.41  l/sqm)
            statutory, counties, cities and local bodies at the place of
            installation.
                                                                   Dry Film Thickness per Coat            14 ± 2 mils
                                                                                                      356 ± 50 microns
             Features
              •  Color Stable                                      Pot Life @ 75ºF (24ºC), 50% R.H.     40-45 minutes
              •  Excellent Weatherability
              •  High Gloss
              •  High Tensile Strength                             Hardness, ASTM D2240                65 ± 5 Shore D
              •  Quick Cure
                                                                                                          400 ± 20 pli
              •  Seamless Waterproofing Membrane                   Tear Resistance,                    70.1 ± 8.8 kN/m
                                                                   ASTM D624
              •  UV Resistant for Superior Gloss Retention
              •  Very Durable
                                                                   Tensile Strength,                    3500 ± 300 psi
                                                                   ASTM D412                           24.1 ± 2.1 MPa
             Typical Uses
              •  Concrete               •  Off-Shore Oil Platforms  Ultimate Elongation,                    50 ± 10%
                                                                   ASTM D412
              •  Chemical Plants        •  Pipeline Barges
              •  Cold Storage Areas     •  Plastic                 Specific Gravity,
              •  Fertilizer Plants      •  Plywood                 Side A                                  1.07 ± 0.1
                                                                   Side B
                                                                                                           1.02 ± 0.1
              •  Food Processing Areas  •  Pulp and Paper Mills
              •  Industrial Warehouses  •  Steel                   Total Solids by Weight,                  90 ± 2%
                                                                   ASTM D2669
             Packaging
                                                                   Total Solids by Volume,                  88 ± 2%
                                                                   ASTM D2697
              2-gallon kit    One 1 gallon (3.78 liters) can Side-A
                              and One 1 gallon (3.78 liters) can   Viscosity at 75°F (24°C),
                              Side-B                               Side A                                200 ± 50 cps
                                                                   Side B                                200 ± 50 cps
              10-gallon kit   One 5 gallon (18.9 liter) pail of Side-A
                              and One 5 gallon (18.9 liter) pail of   Volatile Organic Compounds,          0.83 lb/gal
                              Side-B                               ASTM D2369-81                         100 gm/liters
                              10-gallon kit is not a stock item and is
                              available with minimum order of 100
                              gallons (378 liters)


            Color                                                Refer to product General Guidelines for detailed surface
            Clear                                                preparation information.
            Coverage                                             Minimum recommended surface preparation:
            The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm).   METAL:
            Coverage rate will depend on surface roughness and porosity.  SSPC-SP6/NACE 3, 2 mils (50 microns) profile.
            Surface Preparation
            Surface must be clean, dry, and in sound condition. Remove   CONCRETE & MASONRY:
                                                                   SSPC-SP13/NACE 6 or ICRI No. 310.2 CSP 3-5. Primer
            all oil, dust, grease, dirt, loose rust, and other foreign material   required.
            to ensure adequate adhesion.

        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 7.13
        wpsales@polycoatusa.com  |  www.polycoatusa.com
