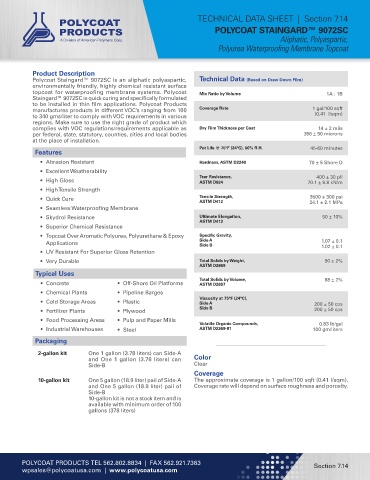

TECHNICAL DATA SHEET  |  Section 7.14
                                                                        POLYCOAT STAINGARD™ 9072SC
                                                                                              Aliphatic, Polyaspartic,
                                                                         Polyurea Waterproofing Membrane Topcoat



            Product Description
            Polycoat Staingard™ 9072SC is an aliphatic polyaspartic,   Technical Data (Based on Draw Down Film)
            environmentally friendly, highly chemical resistant surface
            topcoat for waterproofing membrane systems. Polycoat   Mix Ratio by Volume                       1A : 1B
            Staingard™ 9072SC is quick curing and specifically formulated
            to be installed in thin film applications. Polycoat Products
            manufactures products in different VOC’s ranging from 100   Coverage Rate                   1 gal/100 sqft
            to 340 gms/liter to comply with VOC requirements in various                                  (0.41  l/sqm)
            regions. Make sure to use the right grade of product which
            complies with VOC regulations/requirements applicable as   Dry Film Thickness per Coat        14 ± 2 mils
            per federal, state, statutory, counties, cities and local bodies                          356 ± 50 microns
            at the place of installation.
                                                                   Pot Life @ 75ºF (24ºC), 50% R.H.     45-60 minutes
             Features
              •  Abrasion Resistant                                Hardness, ASTM D2240                70 ± 5 Shore D
              •  Excellent Weatherability
                                                                   Tear Resistance,                       400 ± 30 pli
              •  High Gloss                                        ASTM D624                           70.1 ± 8.8 kN/m
              •  High Tensile Strength
              •  Quick Cure                                        Tensile Strength,                    3500 ± 300 psi
                                                                   ASTM D412                           24.1 ± 2.1 MPa
              •  Seamless Waterproofing Membrane
              •  Skydrol Resistance                                Ultimate Elongation,                     50 ± 10%
                                                                   ASTM D412
              •  Superior Chemical Resistance
              •  Topcoat Over Aromatic Polyurea, Polyurethane & Epoxy   Specific Gravity,
                Applications                                       Side A                                  1.07 ± 0.1
                                                                   Side B
                                                                                                           1.02 ± 0.1
              •  UV Resistant For Superior Gloss Retention
              •  Very Durable                                      Total Solids by Weight,                  90 ± 2%
                                                                   ASTM D2669
             Typical Uses
                                                                   Total Solids by Volume,                  88 ± 2%
               •  Concrete              •  Off-Shore Oil Platforms  ASTM D2697
               •  Chemical Plants       •  Pipeline Barges
                                                                   Viscosity at 75°F (24°C),
               •  Cold Storage Areas    •  Plastic                 Side A                                200 ± 50 cps
                                                                   Side B
               •  Fertilizer Plants     •  Plywood                                                       200 ± 50 cps
               •  Food Processing Areas  •  Pulp and Paper Mills
                                                                   Volatile Organic Compounds,             0.83 lb/gal
               •  Industrial Warehouses  •  Steel                  ASTM D2369-81                         100 gm/liters

             Packaging
              2-gallon kit    One 1 gallon (3.78 liters) can Side-A
                              and One 1 gallon (3.78 liters) can   Color
                              Side-B                             Clear
                                                                 Coverage
              10-gallon kit   One 5 gallon (18.9 liter) pail of Side-A   The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm).
                              and One 5 gallon (18.9 liter) pail of   Coverage rate will depend on surface roughness and porosity.
                              Side-B
                              10-gallon kit is not a stock item and is
                              available with minimum order of 100
                              gallons (378 liters)









        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                          Section 7.14
        wpsales@polycoatusa.com  |  www.polycoatusa.com
