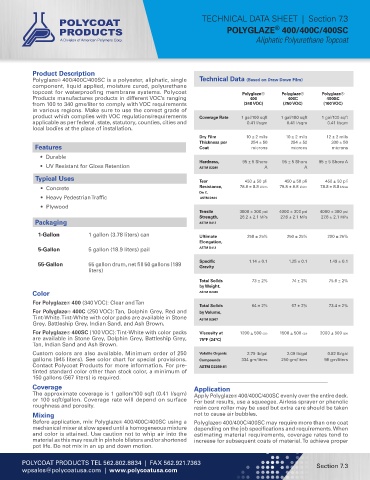

TECHNICAL DATA SHEET  |  Section 7.3
                                                                                            ®
                                                                            POLYGLAZE  400/400C/400SC
                                                                                      Aliphatic Polyurethane Topcoat





            Product Description
            Polyglaze® 400/400C/400SC is a polyester, aliphatic, single   Technical Data (Based on Draw Down Film)
            component, liquid applied, moisture cured, polyurethane
            topcoat for waterproofing membrane systems. Polycoat                 Polyglaze®   Polyglaze®    Polyglaze®
            Products manufactures products in different VOC’s ranging               400         400C         400SC
            from 100 to 340 gms/liter to comply with VOC requirements             (340 VOC)    (250 VOC)    (100 VOC)
            in various regions. Make sure to use the correct grade of
            product which complies with VOC regulations/requirements   Coverage Rate  1 gal/100 sqft  1 gal/100 sqft  1 gal/100 sqft
            applicable as per federal, state, statutory, counties, cities and      0.41 l/sqm   0.41 l/sqm   0.41 l/sqm
            local bodies at the place of installation.
                                                                   Dry Film       10 ± 2 mils   10 ± 2 mils  12 ± 2 mils
                                                                   Thickness per    254 ± 50     254 ± 50      330 ± 50
             Features                                              Coat             microns      microns       microns
              •  Durable
                                                                   Hardness,     95 ± 5 Shore   95 ± 5 Shore   95 ± 5 Shore A
              •  UV Resistant for Gloss Retention                  ASTM D2240            A            A
             Typical Uses                                          Tear           450 ± 50 pli  450 ± 50 pli  450 ± 50 pli
               •  Concrete                                         Resistance,   78.8 ± 8.8 kN/m  78.8 ± 8.8 kN/m  78.8 ± 8.8 kN/m
                                                                   Die C,
               •  Heavy Pedestrian Traffic                          ASTM D624
               •  Plywood
                                                                   Tensile      3800 ± 300 psi  4000 ± 300 psi  4000 ± 300 psi
                                                                   Strength,    26.2 ± 2.1 MPa  27.6 ± 2.1 MPa  27.6 ± 2.1 MPa
             Packaging                                             ASTM D412

              1-Gallon        1 gallon (3.78 liters) can           Ultimate        250 ± 25%    250 ± 25%    200 ± 25%
                                                                   Elongation,
              5-Gallon        5 gallon (18.9 liters) pail          ASTM D412
                                                                   Specific        1.14 ± 0.1    1.25 ± 0.1   1.49 ± 0.1
              55-Gallon       55 gallon drum, net fill 50 gallons (189   Gravity
                              liters)
                                                                   Total Solids     73 ± 2%       74 ± 2%     75.6 ± 2%
                                                                   by Weight,
            Color                                                  ASTM D2369
            For Polyglaze® 400 (340 VOC): Clear and Tan
                                                                   Total Solids     64 ± 2%       67 ± 2%     73.4 ± 2%
            For Polyglaze® 400C (250 VOC): Tan, Dolphin Grey, Red and   by Volume,
            Tint-White. Tint-White with color packs are available in Stone   ASTM D2697
            Grey, Battleship Grey, Indian Sand, and Ash Brown.
            For Polyglaze® 400SC (100 VOC): Tint-White with color packs   Viscosity at   1200 ± 500 cps  1500 ± 500 cps  2000 ± 500 cps
            are available in Stone Grey, Dolphin Grey, Battleship Grey,   75°F (24°C)
            Tan, Indian Sand and Ash Brown.
            Custom colors are also available. Minimum order of 250   Volatile Organic   2.79 lb/gal  2.09 lb/gal  0.82 lb/gal
            gallons (945 liters). See color chart for special provisions.   Compounds  334 gm/liters  250 gm/liters  98 gm/liters
            Contact Polycoat Products for more information. For pre-  ASTM D2369-81
            tinted standard color other than stock color, a minimum of
            150 gallons (567 liters) is required.
            Coverage                                             Application
            The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm)   Apply Polyglaze® 400/400C/400SC evenly over the entire deck.
            or 100 sqft/gallon. Coverage rate will depend on surface   For best results, use a squeegee. Airless sprayer or phenolic
            roughness and porosity.                              resin core roller may be used but extra care should be taken
            Mixing                                               not to cause air bubbles.
            Before application, mix Polyglaze® 400/400C/400SC using a   Polyglaze® 400/400C/400SC may require more than one coat
            mechanical mixer at slow speed until a homogeneous mixture   depending on the job specifications and requirements. When
            and color is attained. Use caution not to whip air into the   estimating material requirements, coverage rates tend to
            material as this may result in pinhole blisters and/or shortened   increase for subsequent coats of material. To achieve proper
            pot life. Do not mix in an up and down motion.
