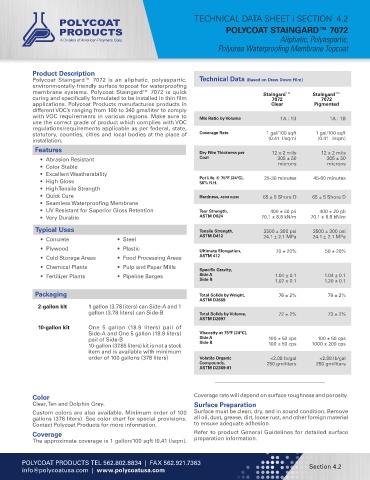

TECHNICAL DATA SHEET I SECTION 4.2
POLYCOAT STAINGARD™ 7072
Aliphatic, Polyaspartic,
Polyurea Waterproofing Membrane Topcoat

Product Description
Polycoat Staingard™ 7072 is an aliphatic, polyaspartic, Technical Data (Based on Draw Down Film)
environmentally-friendly surface topcoat for waterproofing
membrane systems. Polycoat Staingard™ 7072 is quick Staingard™ Staingard™
curing and specifically formulated to be installed in thin film 7072 7072
applications. Polycoat Products manufactures products in Clear Pigmented
different VOC’s ranging from 100 to 340 gms/liter to comply
with VOC requirements in various regions. Make sure to Mix Ratio by Volume 1A : 1B 1A : 1B
use the correct grade of product which complies with VOC
regulations/requirements applicable as per federal, state,
statutory, counties, cities and local bodies at the place of Coverage Rate 1 gal/100 sqft 1 gal/100 sqft
installation. (0.41 l/sqm) (0.41 l/sqm)
Features Dry Film Thickness per 12 ± 2 mils 12 ± 2 mils
• Abrasion Resistant Coat 305 ± 50 305 ± 50
• Color Stable microns microns
• Excellent Weatherability
• High Gloss Pot Life @ 75ºF (24ºC), 25-30 minutes 45-60 minutes
50% R.H.
• High Tensile Strength
• Quick Cure Hardness, ASTM D2240 65 ± 5 Shore D 65 ± 5 Shore D
• Seamless Waterproofing Membrane
• UV Resistant for Superior Gloss Retention Tear Strength, 400 ± 50 pli 400 ± 20 pli
• Very Durable ASTM D624 70.1 ± 8.8 kN/m 70.1 ± 8.8 kN/m
Typical Uses Tensile Strength, 3500 ± 300 psi 3500 ± 300 psi
ASTM D412 24.1 ± 2.1 MPa 24.1 ± 2.1 MPa
• Concrete • Steel
• Plywood • Plastic Ultimate Elongation, 70 ± 20% 50 ± 20%
• Cold Storage Areas • Food Processing Areas ASTM 412
• Chemical Plants • Pulp and Paper Mills Specific Gravity,
• Fertilizer Plants • Pipeline Barges Side A 1.04 ± 0.1 1.04 ± 0.1
Side B 1.02 ± 0.1 1.20 ± 0.1

Packaging Total Solids by Weight, 76 ± 2% 79 ± 2%
ASTM D2669
2-gallon kit 1 gallon (3.78 liters) can Side-A and 1
gallon (3.78 liters) can Side-B Total Solids by Volume, 72 ± 2% 73 ± 2%
ASTM D2697
10-gallon kit One 5 gallon (18.9 liters) pail of
Side-A and One 5 gallon (18.9 liters) Viscosity at 75°F (24°C),
pail of Side-B Side A 100 ± 50 cps 100 ± 50 cps
Side B
10-gallon (37.85 liters) kit is not a stock 100 ± 50 cps 1000 ± 200 cps
item and is available with minimum
order of 100 gallons (378 liters) Volatile Organic <2.08 lb/gal <2.08 lb/gal
Compounds, 250 gm/liters 250 gm/liters
ASTM D2369-81

Color Coverage rate will depend on surface roughness and porosity.
Clear, Tan and Dolphin Grey. Surface Preparation
Custom colors are also available. Minimum order of 100 Surface must be clean, dry, and in sound condition. Remove
gallons (378 liters). See color chart for special provisions. all oil, dust, grease, dirt, loose rust, and other foreign material
Contact Polycoat Products for more information. to ensure adequate adhesion.
Coverage Refer to product General Guidelines for detailed surface
The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm). preparation information.

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363 Section 4.2
info@polycoatusa.com | www.polycoatusa.com
