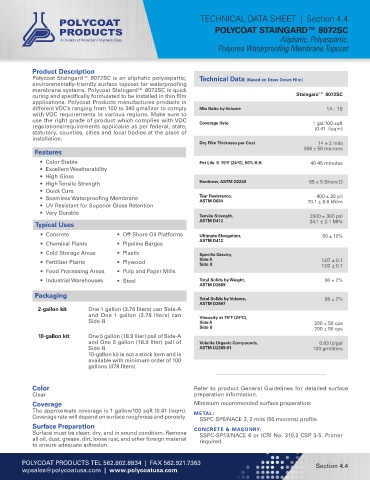

TECHNICAL DATA SHEET | Section 4.4
POLYCOAT STAINGARD™ 8072SC
Aliphatic, Polyaspartic,
Polyurea Waterproofing Membrane Topcoat

Product Description
Polycoat Staingard™ 8072SC is an aliphatic polyaspartic, Technical Data (Based on Draw Down Film)
environmentally-friendly surface topcoat for waterproofing
membrane systems. Polycoat Staingard™ 8072SC is quick
curing and specifically formulated to be installed in thin film Staingard™ 8072SC
applications. Polycoat Products manufactures products in
different VOC’s ranging from 100 to 340 gms/liter to comply Mix Ratio by Volume 1A : 1B
with VOC requirements in various regions. Make sure to
use the right grade of product which complies with VOC Coverage Rate 1 gal/100 sqft
regulations/requirements applicable as per federal, state, (0.41 l/sqm)
statutory, counties, cities and local bodies at the place of
installation.
Dry Film Thickness per Coat 14 ± 2 mils
356 ± 50 microns
Features
• Color Stable Pot Life @ 75ºF (24ºC), 50% R.H. 40-45 minutes
• Excellent Weatherability
• High Gloss
• High Tensile Strength Hardness, ASTM D2240 65 ± 5 Shore D
• Quick Cure
400 ± 20 pli
• Seamless Waterproofing Membrane Tear Resistance, 70.1 ± 8.8 kN/m
ASTM D624
• UV Resistant for Superior Gloss Retention
• Very Durable
Tensile Strength, 3500 ± 300 psi
ASTM D412 24.1 ± 2.1 MPa
Typical Uses
• Concrete • Off-Shore Oil Platforms Ultimate Elongation, 50 ± 10%
ASTM D412
• Chemical Plants • Pipeline Barges
• Cold Storage Areas • Plastic Specific Gravity,
• Fertilizer Plants • Plywood Side A 1.07 ± 0.1
Side B
1.02 ± 0.1
• Food Processing Areas • Pulp and Paper Mills
• Industrial Warehouses • Steel Total Solids by Weight, 90 ± 2%
ASTM D2669
Packaging
Total Solids by Volume, 88 ± 2%
ASTM D2697
2-gallon kit One 1 gallon (3.78 liters) can Side-A
and One 1 gallon (3.78 liters) can Viscosity at 75°F (24°C),
Side-B Side A 200 ± 50 cps
Side B 200 ± 50 cps
10-gallon kit One 5 gallon (18.9 liter) pail of Side-A
and One 5 gallon (18.9 liter) pail of Volatile Organic Compounds, 0.83 lb/gal
Side-B ASTM D2369-81 100 gm/liters
10-gallon kit is not a stock item and is
available with minimum order of 100
gallons (378 liters)

Color Refer to product General Guidelines for detailed surface
Clear preparation information.
Coverage Minimum recommended surface preparation:
The approximate coverage is 1 gallon/100 sqft (0.41 l/sqm). METAL:
Coverage rate will depend on surface roughness and porosity. SSPC-SP6/NACE 3, 2 mils (50 microns) profile.
Surface Preparation
Surface must be clean, dry, and in sound condition. Remove CONCRETE & MASONRY:
SSPC-SP13/NACE 6 or ICRI No. 310.2 CSP 3-5. Primer
all oil, dust, grease, dirt, loose rust, and other foreign material required.
to ensure adequate adhesion.
