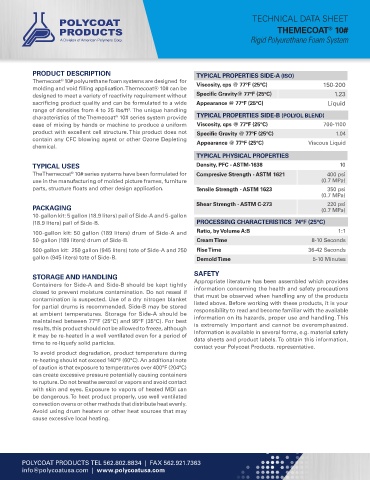

TECHNICAL DATA SHEET
                                                                                             THEMECOAT  10#
                                                                                                              ®
                                                                                    Rigid Polyurethane Foam System





            PRODUCT DESCRIPTION                                   TYPICAL PROPERTIES SIDE-A (ISO)
            Themecoat  10# polyurethane foam systems are designed  for   Viscosity, cps @ 77ºF (25ºC)       150-200
                     ®
            molding and void filling application. Themecoat® 10# can be
            designed to meet a variety of reactivity requirement without   Specific Gravity@ 77ºF (25ºC)        1.23
            sacrificing product quality and can be formulated to a wide   Appearance @ 77ºF (25ºC)           Liquid
            range of densities from 4 to 25 lbs/ft . The unique handling
                                           3
            characteristics of the Themecoat  10# series system provide   TYPICAL PROPERTIES SIDE-B (POLYOL BLEND)
                                       ®
            ease of mixing by hands or machine to produce a uniform   Viscosity, cps @ 77ºF (25ºC)          700-1100
            product with excellent cell structure. This product does not   Specific Gravity @ 77ºF (25ºC)       1.04
            contain any CFC blowing agent or other Ozone Depleting   Appearance @ 77ºF (25ºC)          Viscous Liquid
            chemical.
                                                                  TYPICAL PHYSICAL PROPERTIES

            TYPICAL USES                                          Density, PFC - ASTM-1638                       10
            The Themecoat  10# series systems have been formulated for   Compresive Strength - ASTM 1621     400 psi
                        ®
            use in the manufacturing of molded picture frames, furniture                                   (0.7 MPa)
            parts, structure floats and other design application.  Tensile Strength - ASTM 1623              350 psi
                                                                                                           (0.7 MPa)
                                                                  Shear Strength - ASTM C-273                220 psi
            PACKAGING                                                                                      (0.7 MPa)
            10-gallon kit: 5 gallon (18.9 liters) pail of Side-A and 5-gallon
            (18.9 liters) pail of Side-B.                         PROCESSING CHARACTERISTICS  74ºF (25ºC)
            100-gallon kit: 50 gallon (189 liters) drum of Side-A and   Ratio, by Volume A:B                     1:1
            50-gallon (189 liters) drum of Side-B.                Cream Time                            8-10 Seconds
            500-gallon kit:  250 gallon (945 liters) tote of Side-A and 250   Rise Time                36-42 Seconds
            gallon (945 liters) tote of Side-B.                   Demold Time                           5-10 Minutes


                                                                 SAFETY
            STORAGE AND HANDLING
            Containers for Side-A and Side-B should be kept tightly   Appropriate literature has been assembled which provides
            closed to prevent moisture contamination. Do not reseal if   information concerning the health and safety precautions
            contamination is suspected. Use of a dry nitrogen blanket   that must be observed when handling any of the products
            for partial drums is recommended. Side-B may be stored   listed above. Before working with these products, it is your
            at ambient temperatures. Storage for Side-A should be   responsibility to read and become familiar with the available
            maintained between 77°F (25°C) and 95°F (35°C). For best   information on its hazards, proper use and handling. This
            results, this product should not be allowed to freeze, although   is extremely important and cannot be overemphasized.
            it may be re-heated in a well ventilated oven for a period of   Information is available in several forms, e.g. material safety
            time to re-liquefy solid particles.                  data sheets and product labels. To obtain this information,
                                                                 contact your Polycoat Products. representative.
            To avoid product degradation, product temperature during
            re-heating should not exceed 140°F (60°C). An additional note
            of caution is that exposure to temperatures over 400°F (204°C)
            can create excessive pressure potentially causing containers
            to rupture. Do not breathe aerosol or vapors and avoid contact
            with skin and eyes. Exposure to vapors of heated MDI can
            be dangerous. To heat product properly, use well ventilated
            convection ovens or other methods that distribute heat evenly.
            Avoid using drum heaters or other heat sources that may
            cause excessive local heating.







        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363
        info@polycoatusa.com  |  www.polycoatusa.com
