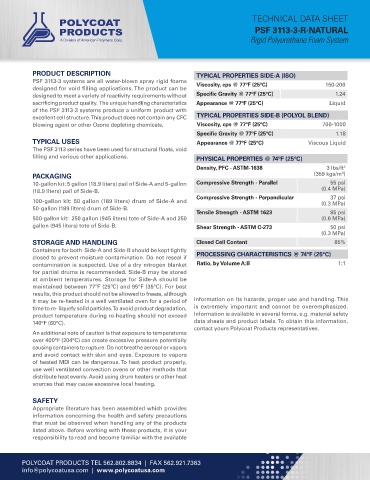

TECHNICAL DATA SHEET
                                                                                     PSF 3113-3-R-NATURAL
                                                                                    Rigid Polyurethane Foam System





            PRODUCT DESCRIPTION                                   TYPICAL PROPERTIES SIDE-A (ISO)
            PSF 3113-3 systems are all water-blown spray rigid foams   Viscosity, cps @ 77ºF (25ºC)          150-200
            designed for void filling applications. The product can be
            designed to meet a variety of reactivity requirements without   Specific Gravity @ 77ºF (25ºC)      1.24
            sacrificing product quality.  The unique handling characteristics   Appearance @ 77ºF (25ºC)      Liquid
            of the PSF 3113-3 systems produce a uniform product with
            excellent cell structure. This product does not contain any CFC   TYPICAL PROPERTIES SIDE-B (POLYOL BLEND)
            blowing agent or other Ozone depleting chemicals,     Viscosity, cps @ 77ºF (25ºC)              700-1000
                                                                  Specific Gravity @ 77ºF (25ºC)                1.18
            TYPICAL USES                                          Appearance @ 77ºF (25ºC)             Viscous Liquid
            The PSF 3113 series have been used for structural floats, void
            filling and various other applications.               PHYSICAL PROPERTIES @ 74ºF (25ºC)
                                                                  Density, PFC - ASTM-1638                   3 lbs/ft
                                                                                                                   3
                                                                                                                  3
            PACKAGING                                                                                    (359 kgs/m )
            10-gallon kit: 5 gallon (18.9 liters) pail of Side-A and 5-gallon   Compressive Strength - Parallel  55 psi
            (18.9 liters) pail of Side-B.                                                                  (0.4 MPa)
                                                                  Compressive Strength - Perpendicular        37 psi
            100-gallon kit: 50 gallon (189 liters) drum of Side-A and                                      (0.3 MPa)
            50-gallon (189 liters) drum of Side-B.
                                                                  Tensile Strength - ASTM 1623                85 psi
            500-gallon kit:  250 gallon (945 liters) tote of Side-A and 250                                (0.6 MPa)
            gallon (945 liters) tote of Side-B.                   Shear Strength - ASTM C-273                 50 psi
                                                                                                           (0.3 MPa)
            STORAGE AND HANDLING                                  Closed Cell Content                           85%
            Containers for both  Side-A and Side-B should be kept tightly
            closed to prevent moisture contamination. Do not reseal if   PROCESSING CHARACTERISTICS @ 74ºF (25ºC)
            contamination is suspected. Use of a dry nitrogen blanket   Ratio, by Volume A:B                     1:1
            for partial drums is recommended. Side-B may be stored
            at ambient temperatures. Storage for Side-A should be
            maintained between 77ºF (25ºC) and 95°F (35°C). For best
            results, this product should not be allowed to freeze, although
            it may be re-heated in a well ventilated oven for a period of   information on its hazards, proper use and handling. This
            time to re- liquefy solid particles. To avoid product degradation,   is extremely important and cannot be overemphasized.
            product temperature during re-heating should not exceed   Information is available in several forms, e.g. material safety
            140°F (60°C).                                        data sheets and product labels. To obtain this information,
                                                                 contact yours Polycoat Products representatives.
            An additional note of caution is that exposure to temperatures
            over 400°F (204°C) can create excessive pressure potentially
            causing containers to rupture. Do not breathe aerosol or vapors
            and avoid contact with skin and eyes. Exposure to vapors
            of heated MDI can be dangerous. To heat product properly,
            use well ventilated convection ovens or other methods that
            distribute heat evenly. Avoid using drum heaters or other heat
            sources that may cause excessive local heating.


            SAFETY
            Appropriate literature has been assembled which provides
            information concerning the health and safety precautions
            that must be observed when handling any of the products
            listed above. Before working with these products, it is your
            responsibility to read and become familiar with the available



        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363
        info@polycoatusa.com  |  www.polycoatusa.com
