Page 17 - tmp

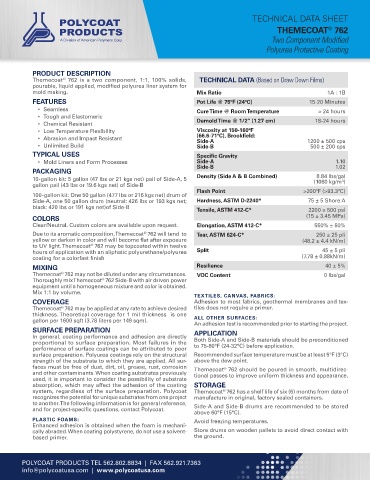

TECHNICAL DATA SHEET
THEMECOAT 762
®
Two Component Modified
Polyurea Protective Coating

PRODUCT DESCRIPTION
Themecoat 762 is a two component, 1:1, 100% solids, TECHNICAL DATA (Based on Draw Down Films)
®
pourable, liquid applied, modified polyurea liner system for
mold making. Mix Ratio 1A : 1B
FEATURES Pot Life @ 75ºF (24ºC) 15-20 Minutes
• Seamless Cure Time @ Room Temperature > 24 hours
• Tough and Elastomeric
• Chemical Resistant Demold Time @ 1/2” (1.27 cm) 18-24 hours
• Low Temperature Flexibility Viscosity at 150-160ºF
• Abrasion and Impact Resistant (66.6-71ºC), Brookfield: 1200 ± 500 cps
Side-A
• Unlimited Build Side-B 500 ± 200 cps
TYPICAL USES Specific Gravity
• Mold Liners and Form Processes Side-A 1.10
Side-B 1.02
PACKAGING
8.84 lbs/gal
10-gallon kit: 5 gallon (47 lbs or 21 kgs net) pail of Side-A, 5 Density (Side A & B Combined) (1060 kg/m³)
gallon pail (43 lbs or 19.6 kgs net) of Side-B
Flash Point >200ºF (>93.3ºC)
100-gallon kit: One 50 gallon (477 lbs or 216 kgs net) drum of
Side-A, one 50 gallon drum (neutral: 426 lbs or 193 kgs net; Hardness, ASTM D-2240* 75 ± 5 Shore A
black: 420 lbs or 191 kgs net)of Side-B Tensile, ASTM 412-C* 2200 ± 500 psi
COLORS (15 ± 3.45 MPa)
Clear/Neutral. Custom colors are available upon request. Elongation, ASTM 412-C* 550% ± 50%
Due to its aromatic composition, Themecoat 762 will tend to Tear, ASTM 624-C* 250 ± 25 pli
®
yellow or darken in color and will become flat after exposure (48.2 ± 4.4 kN/m)
to UV light. Themecoat 762 may be topcoated within twelve
®
hours of application with an aliphatic polyurethane/polyurea Split 45 ± 5 pli
coating for a colorfast finish (7.78 ± 0.88kN/m)
MIXING Resilience 40 ± 5%
Themecoat 762 may not be diluted under any circumstances. VOC Content 0 lbs/gal
®
®
Thoroughly mix Themecoat 762 Side-B with air driven power
equipment until a homogeneous mixture and color is obtained.
Mix 1:1 by volume.
TEXTILES, CANVAS, FABRICS:
COVERAGE Adhesion to most fabrics, geothermal membranes and tex-
Themecoat 762 may be applied at any rate to achieve desired tiles does not require a primer.
®
thickness. Theoretical coverage for 1 mil thickness is one
gallon per 1600 sqft (3.78 liters per 149 sqm). ALL OTHER SURFACES:
An adhesion test is recommended prior to starting the project.
SURFACE PREPARATION
In general, coating performance and adhesion are directly APPLICATION
Both Side-A and Side-B materials should be preconditioned
proportional to surface preparation. Most failures in the to 75-80°F (24-32°C) before application.
performance of surface coatings can be attributed to poor
surface preparation. Polyurea coatings rely on the structural Recommended surface temperature must be at least 5°F (3°C)
strength of the substrate to which they are applied. All sur- above the dew point.
faces must be free of dust, dirt, oil, grease, rust, corrosion Themecoat 762 should be poured in smooth, multidirec-
®
and other contaminants. When coating substrates previously tional passes to improve uniform thickness and appearance.
used, it is important to consider the possibility of substrate
absorption, which may affect the adhesion of the coating STORAGE
system, regardless of the surface preparation. Polycoat Themecoat 762 has a shelf life of six (6) months from date of
®
recognizes the potential for unique substrates from one project manufacture in original, factory sealed containers.
to another. The following information is for general reference, Side-A and Side-B drums are recommended to be stored
and for project-specific questions, contact Polycoat.
above 60°F (15°C).
PLASTIC FOAMS: Avoid freezing temperatures.
Enhanced adhesion is obtained when the foam is mechani-
cally abraded. When coating polystyrene, do not use a solvent- Store drums on wooden pallets to avoid direct contact with
based primer. the ground.

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363
info@polycoatusa.com | www.polycoatusa.com
