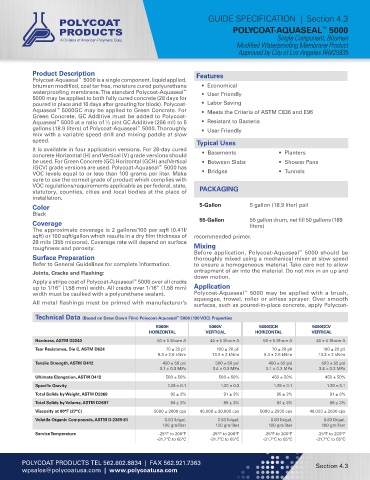

GUIDE SPECIFICATION | Section 4.3
POLYCOAT-AQUASEAL 5000
™
Single Component, Bitumen
Modified Waterproofing Membrane Product
Approved by City of Los Angeles RR#25935

Product Description Features
Polycoat-Aquaseal 5000 is a single component, liquid applied,
™
bitumen modified, coal tar free, moisture cured polyurethane • Economical
waterproofing membrane. The standard Polycoat-Aquaseal • User Friendly
™
5000 may be applied to both fully cured concrete (28 days for
poured in place and 10 days after grouting for block). Polycoat- • Labor Saving
Aquaseal 5000GC may be applied to Green Concrete. For • Meets the Criteria of ASTM C836 and E96
™
Green Concrete, GC Additive must be added to Polycoat-
Aquaseal 5000 at a ratio of ½ pint GC Additive (256 ml) to 5 • Resistant to Bacteria
™
gallons (18.9 liters) of Polycoat-Aquaseal 5000. Thoroughly • User Friendly
™
mix with a variable speed drill and mixing paddle at slow
speed. Typical Uses
It is available in four application versions. For 28-day cured • Basements • Planters
concrete Horizontal (H) and Vertical (V) grade versions should
be used. For Green Concrete (GC) Horizontal (GCH) and Vertical • Between Slabs • Shower Pans
(GCV) grade versions are used. Polycoat-Aquaseal 5000 has
™
VOC levels equal to or less than 100 grams per liter. Make • Bridges • Tunnels
sure to use the correct grade of product which complies with
VOC regulations/requirements applicable as per federal, state,
statutory, counties, cities and local bodies at the place of PACKAGING
installation.
Color 5-Gallon 5 gallon (18.9 liter) pail
Black
55-Gallon 55 gallon drum, net fill 50 gallons (189
Coverage liters)
The approximate coverage is 2 gallons/100 per sqft (0.41l/
sqft) or 100 sqft/gallon which results in a dry film thickness of recommended primer.
28 mils (355 microns). Coverage rate will depend on surface
roughness and porosity. Mixing
Before application, Polycoat-Aquaseal 5000 should be
™
Surface Preparation thoroughly mixed using a mechanical mixer at slow speed
Refer to General Guidelines for complete information. to ensure a homogeneous material. Take care not to allow
Joints, Cracks and Flashing: entrapment of air into the material. Do not mix in an up and
down motion.
Apply a stripe coat of Polycoat-Aquaseal 5000 over all cracks
™
up to 1/16” (1.58 mm) width. All cracks over 1/16” (1.58 mm) Application
™
width must be caulked with a polyurethane sealant. Polycoat-Aquaseal 5000 may be applied with a brush,
squeegee, trowel, roller or airless sprayer. Over smooth
All metal flashings must be primed with manufacturer’s surfaces, such as poured-in-place concrete, apply Polycoat-
™
Technical Data (Based on Draw Down Film) Polycoat-Aquaseal 5000 (100 VOC) Properties
5000H 5000V 5000GCH 5000GCV
HORIZONTAL VERTICAL HORIZONTAL VERTICAL
Hardness, ASTM D2240 50 ± 5 Shore A 45 ± 5 Shore A 50 ± 5 Shore A 45 ± 5 Shore A
Tear Resistance, Die C, ASTM D624 70 ± 20 pli 100 ± 20 pli 70 ± 20 pli 100 ± 20 pli
9.3 ± 2.6 kN/m 13.3 ± 2 kN/m 9.3 ± 2.6 kN/m 13.3 ± 2 kN/m
Tensile Strength, ASTM D412 450 ± 50 psi 500 ± 50 psi 450 ± 50 psi 500 ± 50 psi
3.1 ± 0.3 MPa 3.4 ± 0.3 MPa 3.1 ± 0.3 MPa 3.4 ± 0.3 MPa
Ultimate Elongation, ASTM D412 500 ± 50% 500 ± 50% 450 ± 50% 450 ± 50%
Specific Gravity 1.28 ± 0.1 1.20 ± 0.3 1.28 ± 0.1 1.20 ± 0.1
Total Solids by Weight, ASTM D2369 95 ± 3% 91 ± 3% 95 ± 3% 91 ± 3%
Total Solids by Volume, ASTM D2697 94 ± 3% 89 ± 3% 94 ± 3% 89 ± 3%
Viscosity at 80°F (27°C) 5000 ± 2000 cps 40,000 ± 20,000 cps 5000 ± 2000 cps 40,000 ± 2000 cps
Volatile Organic Compounds, ASTM D-2369-81 0.83 lb/gal, 0.83 lb/gal, 0.83 lb/gal, 0.83 lb/gal,
100 gm/liter 100 gm/liter 100 gm/liter 100 gm/liter
Service Temperature -25°F to 200°F -25°F to 200°F -25°F to 200°F -25°F to 200°F
-31.7°C to 65°C -31.7°C to 65°C -31.7°C to 65°C -31.7°C to 65°C

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363 Section 4.3
