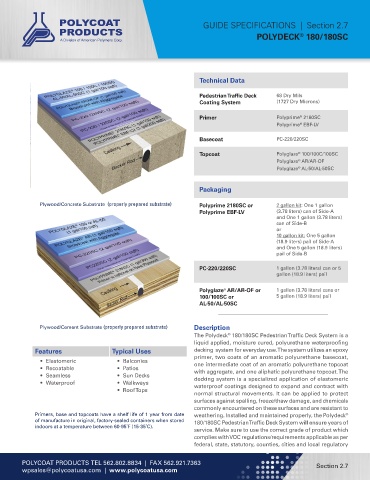

GUIDE SPECIFICATIONS  |  Section 2.7
                                                                                      POLYDECK  180/180SC
                                                                                                    ®







                                                                   Technical Data

                                                                   Pedestrian Traffic Deck   68 Dry Mils
                                                                   Coating System            (1727 Dry Microns)


                                                                   Primer                    Polyprime  2180SC
                                                                                                    ®
                                                                                                    ®
                                                                                             Polyprime  EBF-LV
                                                                   Basecoat                  PC-220/220SC

                                                                                                    ®
                                                                   Topcoat                   Polyglaze  100/100C/100SC
                                                                                                    ®
                                                                                             Polyglaze  AR/AR-OF
                                                                                             Polyglaze  AL-50/AL-50SC
                                                                                                    ®
                                                                   Packaging

              Plywood/Concrete Substrate  (properly prepared substrate)  Polyprime 2180SC or   2 gallon kit: One 1 gallon
                                                                   Polyprime EBF-LV         (3.78 liters) can of Side-A
                                                                                            and One 1 gallon (3.78 liters)
                                                                                            can of Side-B
                                                                                            or
                                                                                            10 gallon kit: One 5 gallon
                                                                                            (18.9 liters) pail of Side-A
                                                                                            and One 5 gallon (18.9 liters)
                                                                                            pail of Side-B

                                                                   PC-220/220SC             1 gallon (3.78 liters) can or 5
                                                                                            gallon (18.9 liters) pail

                                                                   Polyglaze  AR/AR-OF or   1 gallon (3.78 liters) cans or
                                                                           ®
                                                                   100/100SC or             5 gallon (18.9 liters) pail
                                                                   AL-50/AL-50SC



              Plywood/Cement Substrate (properly prepared substrate)  Description
                                                                 The Polydeck  180/180SC Pedestrian Traffic Deck System is a
                                                                            ®
                                                                 liquid applied, moisture cured, polyurethane waterproofing
             Features                 Typical Uses               decking  system for everyday use. The system utilizes an epoxy
                                                                 primer, two coats of an aromatic polyurethane basecoat,
              •  Elastomeric            •  Balconies             one intermediate coat of an aromatic polyurethane topcoat
              •  Recoatable             •  Patios                with aggregate, and one aliphatic polyurethane topcoat. The
              •  Seamless               •  Sun Decks             decking system is a specialized application of elastomeric
              •  Waterproof             •  Walkways              waterproof coatings designed to expand and contract with
                                        •  Roof Tops
                                                                 normal structural movements. It can be applied to protect
                                                                 surfaces against spalling, freeze/thaw damage, and chemicals
                                                                 commonly encountered on these surfaces and are resistant to
             Primers, base and topcoats have a shelf life of 1 year from date   weathering. Installed and maintained properly, the Polydeck
                                                                                                                   ®
             of manufacture in original, factory-sealed containers when stored   180/180SC Pedestrian Traffic Deck System will ensure years of
             indoors at a temperature between 60-95˚F (15-35˚C).
                                                                 service. Make sure to use the correct grade of product which
                                                                 complies with VOC regulations/requirements applicable as per
                                                                 federal, state, statutory, counties, cities and local regulatory
