Page 33 - Polycoat 1.1 Table of Contents

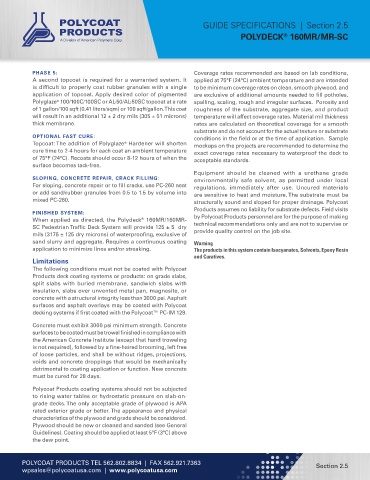

GUIDE SPECIFICATIONS | Section 2.5
POLYDECK 160MR/MR-SC
®

PHASE 5: Coverage rates recommended are based on lab conditions,
A second topcoat is required for a warranted system. It applied at 75°F (24°C) ambient temperature and are intended
is difficult to properly coat rubber granules with a single to be minimum coverage rates on clean, smooth plywood, and
application of topcoat. Apply desired color of pigmented are exclusive of additional amounts needed to fill potholes,
Polyglaze 100/100C/100SC or AL-50/AL-50SC topcoat at a rate spalling, scaling, rough and irregular surfaces. Porosity and
®
of 1 gallon/100 sqft (0.41 liters/sqm) or 100 sqft/gallon. This coat roughness of the substrate, aggregate size, and product
will result in an additional 12 ± 2 dry mils (305 ± 51 microns) temperature will affect coverage rates. Material mil thickness
thick membrane. rates are calculated on theoretical coverage for a smooth
substrate and do not account for the actual texture or substrate
OPTIONAL FAST CURE: conditions in the field or at the time of application. Sample
Topcoat: The addition of Polyglaze Hardener will shorten mockups on the projects are recommended to determine the
®
cure time to 2-4 hours for each coat an ambient temperature exact coverage rates necessary to waterproof the deck to
of 75°F (24°C). Recoats should occur 8-12 hours of when the acceptable standards.
surface becomes tack-free.
Equipment should be cleaned with a urethane grade
SLOPING, CONCRETE REPAIR, CRACK FILLING: environmentally safe solvent, as permitted under local
For sloping, concrete repair or to fill cracks, use PC-260 neat regulations, immediately after use. Uncured materials
or add sand/rubber granules from 0.5 to 1.5 by volume into are sensitive to heat and moisture. The substrate must be
mixed PC-260. structurally sound and sloped for proper drainage. Polycoat
Products assumes no liability for substrate defects. Field visits
FINISHED SYSTEM:
When applied as directed, the Polydeck 160MR/160MR- by Polycoat Products personnel are for the purpose of making
®
SC Pedestrian Traffic Deck System will provide 125 ± 5 dry technical recommendations only and are not to supervise or
mils (3175 ± 125 dry microns) of waterproofing, exclusive of provide quality control on the job site.
sand slurry and aggregate. Requires a continuous coating Warning
application to minimize lines and/or streaking. The products in this system contain Isocyanates, Solvents, Epoxy Resin
and Curatives.
Limitations
The following conditions must not be coated with Polycoat
Products deck coating systems or products: on grade slabs,
split slabs with buried membrane, sandwich slabs with
insulation, slabs over unvented metal pan, magnesite, or
concrete with a structural integrity less than 3000 psi. Asphalt
surfaces and asphalt overlays may be coated with Polycoat
decking systems if first coated with the Polycoat™ PC-IM 129.
Concrete must exhibit 3000 psi minimum strength. Concrete
surfaces to be coated must be trowel finished in compliance with
the American Concrete Institute (except that hand troweling
is not required), followed by a fine-haired brooming, left free
of loose particles, and shall be without ridges, projections,
voids and concrete droppings that would be mechanically
detrimental to coating application or function. New concrete
must be cured for 28 days.

Polycoat Products coating systems should not be subjected
to rising water tables or hydrostatic pressure on slab-on-
grade decks. The only acceptable grade of plywood is APA
rated exterior grade or better. The appearance and physical
characteristics of the plywood and grade should be considered.
Plywood should be new or cleaned and sanded (see General
Guidelines). Coating should be applied at least 5°F (3°C) above
the dew point.

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363 Section 2.5
wpsales@polycoatusa.com | www.polycoatusa.com
