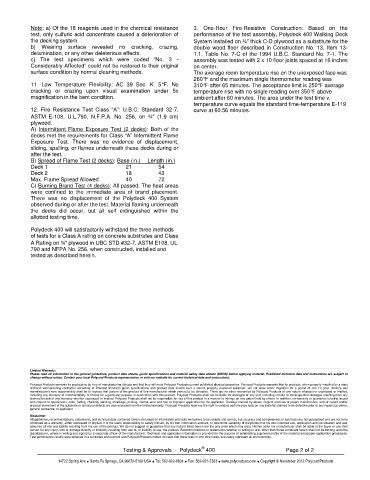

Page 285 - Polycoat 1.1 Table of Contents
P. 285

Note: a) Of the 18 reagents used in the chemical resistance   3.  One-Hour  Fire-Resistive  Construction:  Based  on  the
             test, only sulfuric acid concentrate caused a deterioration of   performance of the test assembly, Polydeck 400 Walking Deck


             the decking   system.                               System installed on p" thick C-D plywood as a substitute for the
             b)  Wearing  surface  revealed  no  cracking,  crazing,   double  wood  floor described in  Construction  No. 13,  Item 13-

            delamination, or any other deleterious effects.      1.1, Table No. 7-C of the 1994 U.B.C. Standard No. 7-1. The

             c)  The  test  specimens  which  were  coded  “No.  3  -   assembly was tested with 2 x 10 floor joists spaced at 16 inches

             Considerably Affected” could not be restored to their original   on center.

             surface condition by normal cleaning methods.
                                                                 The average room temperature rise on the unexposed face was
                                                                 260°F and the maximum single thermometer reading was
             11.  Low  Temperature  Flexibility:  AC  39  Sec.  K.  5°F.  No   310°F after 65 minutes. The acceptance limit is 250°F average
            cracking     or  crazing  upon  visual  examination  under  5x   temperature rise with no single reading over 350°F above

             magnification in the bent condition.                ambient after 60 minutes. The area under the test time v.
                                                                 temperature curve equals the standard time-temperature E-119
             12.  Fire     Resistance  Test  Class  “A”:  U.B.C.  Standard  32-7,   curve at 60.56 minutes.

             ASTM  E-108,  U.L.790,  N.F.P.A.  No.  256,  on  p"  (1.9  cm)

            plywood.
             A)  Intermittent  Flame Exposure Test (2 decks):  Both of the

             decks met the requirements for Class “A” Intermittent Flame

             Exposure  Test.  There  was  no  evidence  of  displacement,

             sliding, spalling, or flames underneath these decks during or
             after the test.
            B) Spread of Flame Test (2 decks): Base (in.)   Length (in.)
             Deck 1                        21        54
             Deck 2                        18        43
             Max. Flame Spread Allowed     40        72

             C) Burning Brand Test (4 decks): All passed. The heat areas
             were  confined  to  the  immediate  area  of  brand  placement.
            There  was  no  displacement  of  the  Polydeck  400  System
             observed during or after the test. Material flaming underneath
             the  decks  did  occur,  but  all  self  extinguished  within  the
             allotted testing time.


             Polydeck 400 will satisfactorily withstand the three methods
            of tests for a Class A rating on concrete substrates and Class
             A Rating on p" plywood in UBC STD #32-7, ASTM E108, UL
             790 and NFPA No. 256, when constructed, installed and
             tested as described herein.





















           ______________________________________________________________________________________________________________________________________
           Limited Warranty:
           Please read all information in the general guidelines, product data sheets, guide specifications and material safety data sheets (MSDS) before applying material. Published technical data and instructions are subject to
           change without notice. Contact your local Polycoat Products representative or visit our website for current technical data and instructions.

           Polycoat Products warrants its products to be free of manufacturing defects and that they will meet Polycoat Products current published physical properties. Polycoat Products warrants that its products, when properly installed by a state
           licensed  waterproofing  contractor  according  to  Polycoat  Products  guide  specifications  and  product  data  sheets  over  a  sound,  properly  prepared  substrate,  will  not  allow  water  migration  for  a  period  of  one  (1)  year.  Seller’s  and
           manufacturer’s sole responsibility shall be to replace that portion of the product of this manufacturer which proves to be defective. There are no other warranties by Polycoat Products of any nature whatsoever expressed or implied,
           including any warranty of merchantability or fitness for a particular purpose in connection with this product. Polycoat Products shall not be liable for damages of any sort, including remote or consequential damages resulting from any
           claimed breach of any warranty whether expressed or implied. Polycoat Products shall not be responsible for use of this product in a manner to infringe on any patent held by others. In addition, no warranty or guarantee is being issued
           with respect to appearance, color, fading, chalking, staining, shrinkage, peeling, normal wear and tear or improper application by the applicator. Damage caused by abuse, neglect and lack of proper maintenance, acts of nature and/or
           physical movement of the substrate or structural defects are also excluded from the limited warranty. Polycoat Products reserves the right to conduct performance tests on any material claimed to be defective prior to any repairs by owner,
           general contractor, or applicator.

           Disclaimer:
           All guidelines, recommendations, statements, and technical data contained herein are based on information and tests we believe to be reliable and correct, but accuracy and completeness of said tests are not guaranteed and are not to be
           construed as a warranty, either expressed or implied. It is the users responsibility to satisfy himself, by his own information and test, to determine suitability of the product for his own intended use, application and job situation and user
           assumes all risk and liability resulting from his use of the product. We do not suggest or guarantee that any hazard listed herein are the only ones which may exist. Neither seller nor manufacturer shall be liable to the buyer or any third
           person for any injury, loss or damage directly or indirectly resulting from use of, or inability to use, the product. Recommendations or statements, whether in writing or oral, other than those contained herein shall not be binding upon the
           manufacturer, unless in writing and signed by a corporate officer of the manufacturer. Technical and application information is provided for the purpose of establishing a general profile of the material and proper application procedures.
           Test performance results were obtained in a controlled environment and Polycoat Products makes no claim that these tests or any other tests, accurately represent all environments.

                                                                    ®
                                                                Testing & Approvals  -  Polydeck  400                                               Page 2 of 2

                    14722 Spring Ave  Santa Fe Springs, CA 90670-5108 USA  Tel: 562-802-8834  Fax: 562-921-7363  www.polycoatusa.com  Copyright ® November 2012 Polycoat Products
