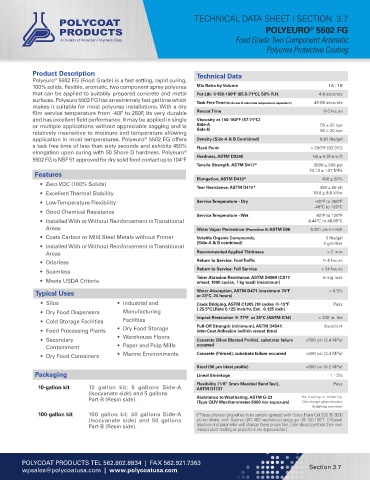

TECHNICAL DATA SHEET I SECTION  3.7
                                                                                         POLYEURO  5502 FG
                                                                                                        ®
                                                                               Food Grade Two Component Aromatic
                                                                                         Polyurea Protective Coating



            Product Description                                   Technical Data
            Polyeuro  5502 FG (Food Grade) is a fast setting, rapid curing,
                   ®
            100% solids, flexible, aromatic, two component spray polyurea   Mix Ratio by Volume               1A : 1B
            that can be applied to suitably prepared concrete and metal   Pot Life @150-160ºF (65.5-71ºC), 50% R.H.  4-8 seconds
            surfaces. Polyeuro 5502 FG has an extremely fast gel time which   Tack Free Time (thickness & substrate temperature dependent)   45-60 seconds
            makes it suitable for most polyurea installations. With a dry
            film service temperature from -40F to 250F, its very durable   Recoat Time                      0-6 hours
            and has excellent field performance. It may be applied in single   Viscosity at 150-160°F (67-71°C)
            or multiple applications without appreciable sagging and is   Side-A                           50 ± 20 cps
            relatively insensitive to moisture and temperature allowing   Side-B                           50 ± 20 cps
            application in most temperatures. Polyeuro  5502 FG offers   Density (Side A & B Combined)     8.81 lbs/gal
                                                 ®
            a tack free time of less than sixty seconds and exhibits 450%   Flash Point                 > 200°F (93.3°C)
            elongation upon curing with 50 Shore D hardness. Polyeuro
                                                              ®
            5502 FG is NSF 51 approved for dry solid food contact up to 104°F.  Hardness, ASTM D2240     50 ± 5 Shore D
                                                                  Tensile Strength, ASTM D412*           3500 ± 200 psi
                                                                                                       24.13 ± 1.37 MPa
             Features
                                                                  Elongation, ASTM D412*                    400 ± 50%
              •  Zero VOC (100% Solids)
                                                                  Tear Resistance, ASTM D412*              450 ± 50 pli
              •  Excellent Thermal Stability                                                             78.8 ± 8.8 kNm
              •  Low Temperature Flexibility                      Service Temperature - Dry              -40°F to 250°F
                                                                                                         -40°C to 120°C
              •  Good Chemical Resistance
                                                                  Service Temperature - Wet               40°F to 120°F
              •  Installed With or Without Reinforcement in Transitional                               4.44°C to 48.89°C
                Areas                                             Water Vapor Permeance (Procedure B) ASTM E96  0.361 perm-inch
              •  Coats Carbon or Mild Steel Metals without Primer  Volatile Organic Compounds,               0 lbs/gal
                                                                  (Side-A & B combined)                     0 gm/liter
              •  Installed With or Without Reinforcement in Transitional
                Areas                                             Recommended Applied Thickness              > 2 mm
              •  Odorless                                         Return to Service: Foot Traffic           1- 4 hours
              •  Seamless                                         Return to Service: Full Service          > 24 hours
                                                                  Taber Abrasion Resistance, ASTM D4060 (CS17    6 mg loss
              •  Meets USDA Criteria                              wheel, 1000 cycles, 1 kg load) (maximum)
             Typical Uses                                         Water Absorption, ASTM D471 (maximum 74°F   < 0.5%
                                                                  or 23°C, 24 hours)
              •  Silos                  •  Industrial and         Crack Bridging, ASTM C1305 (10 cycles @-15°F   Pass
              •  Dry Food Dispensers      Manufacturing           [-25.5°C],Rate 0.125 inch/hr, Ext. -0.125 inch)
              •  Cold Storage Facilities  Facilities              Impact Resistance @ 77°F  or 25°C (ASTM G14)  > 200 in. lbs
              •  Food Processing Plants  •  Dry Food Storage      Pull-Off Strength (minimum), ASTM D4541:   Excellent
                                                                  Inter-Coat Adhesion (within recoat time)
                                        •  Warehouse Floors
              •  Secondary                                        Concrete (Shot Blasted Profile), substrate failure   >500 psi (3.4 MPa)
                Containment             •  Paper and Pulp Mills   occurred
              •  Dry Food Containers    •  Marine Environments    Concrete (Primed), substrate failure occurred  >500 psi (3.4 MPa)
                                                                  Steel (90 μm blast profile)         >900 psi (6.2 MPa)
             Packaging                                            Lineal Shrinkage                            1 - 2%

                                                                  Flexibility (1/8” 3mm Mendrel Bend Test),    Pass
              10-gallon kit   10 gallon kit: 5 gallons Side-A     ASTM D1737
                              (Isocyanate side) and 5 gallons
                              Part-B (Resin side).                Resistance to Weathering, ASTM G-23  No cracking or blistering.
                                                                  (Type QUV Weatherometer-3000 hrs exposure)  Color change, gloss reduction
                                                                                                        & chalking are noted.
              100-gallon kit  100 gallon kit: 50 gallons Side-A   (*These physical properties from sample sprayed with Graco Foam Cat 200 @ 2000
                              (Isocyanate side) and 50 gallons    psi minimum, with Gusmer GX7-400 mechanical purge gun @ 150-160°F. Different
                              Part-B (Resin side).                machine and parameter will change these properties. User should perform their own
                                                                  independent testing as properties are approximate.)
