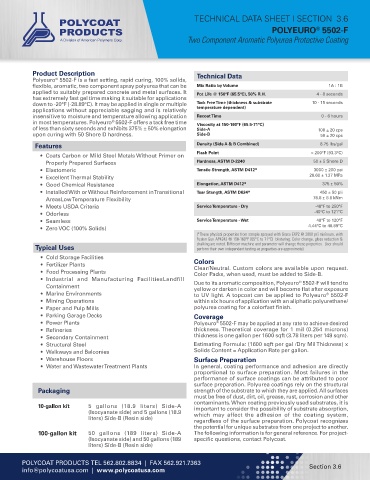

TECHNICAL DATA SHEET I SECTION  3.6
                                                                                           POLYEURO  5502-F
                                                                                                          ®
                                                               Two Component Aromatic Polyurea Protective Coating





            Product Description                                   Technical Data
            Polyeuro  5502-F is a fast setting, rapid curing, 100% solids,
                   ®
            flexible, aromatic, two component spray polyurea that can be   Mix Ratio by Volume                1A : 1B
            applied to suitably prepared concrete and metal surfaces. It   Pot Life @ 150ºF (65.5ºC), 50% R.H.  4 - 8 seconds
            has extremely fast gel time making it suitable for applications
            down to -20°F (-28.89°C). It may be applied in single or multiple   Tack Free Time (thickness & substrate   10 - 15 seconds
            applications without appreciable sagging and is relatively   temperature dependent)
            insensitive to moisture and temperature allowing application   Recoat Time                     0 - 6 hours
            in most temperatures. Polyeuro  5502-F offers a tack free time   Viscosity at 150-160°F (65.5-71°C)
                                      ®
            of less than sixty seconds and exhibits 375% ± 50% elongation   Side-A                        100 ± 20 cps
            upon curing with 50 Shore D hardness.                 Side-B                                   50 ± 20 cps
             Features                                             Density (Side A & B Combined)            8.75 lbs/gal
              •  Coats Carbon or Mild Steel Metals Without Primer on   Flash Point                      > 200°F (93.3°C)
                Properly Prepared Surfaces                        Hardness, ASTM D-2240                  50 ± 5 Shore D
              •  Elastomeric                                      Tensile Strength, ASTM D412*           3000 ± 200 psi
              •  Excellent Thermal Stability                                                           20.68 ± 1.37 MPa
              •  Good Chemical Resistance                         Elongation, ASTM D412*                    375 ± 50%
              •  Installed With or Without Reinforcement in Transitional   Tear Stength, ASTM D624*        450 ± 50 pli
                AreasLow Temperature Flexibility                                                         78.8 ± 8.8 kNm
              •  Meets USDA Criteria                              Service Temperature - Dry              -40°F to 250°F
              •  Odorless                                                                                -40°C to 121°C
              •  Seamless                                         Service Temperature - Wet               40°F to 120°F
              •  Zero VOC (100% Solids)                                                                4.44°C to 48.89°C
                                                                  (*These physical properties from sample sprayed with Graco EXP2 @ 2000 psi minimum, with
                                                                  Fusion Gun AP4242 @ 150-160°F (65°C to 71°C)  blistering. Color change, gloss reduction &
                                                                  chalking are noted. Different machine and parameter will change these properties.  User should
             Typical Uses                                         perform their own independent testing as properties are approximate).
               •  Cold Storage Facilities
               •  Fertilizer Plants                              Colors
                                                                 Clear/Neutral. Custom colors are available upon request.
               •  Food Processing Plants                         Color Packs, when used, must be added to Side-B.
               •  Industrial and Manufacturing FacilitiesLandfill   Due to its aromatic composition, Polyeuro  5502-F will tend to
                                                                                                    ®
                Containment                                      yellow or darken in color and will become flat after exposure
               •  Marine Environments                            to UV light. A topcoat can be applied to Polyeuro  5502-F
                                                                                                             ®
               •  Mining Operations                              within six hours of application with an aliphatic polyurethane/
               •  Paper and Pulp Mills                           polyurea coating for a colorfast finish.
               •  Parking Garage Decks                           Coverage
               •  Power Plants                                   Polyeuro  5502-F may be applied at any rate to achieve desired
                                                                         ®
               •  Refineries                                     thickness. Theoretical coverage for 1 mil (0.254 microns)
               •  Secondary Containment                          thickness is one gallon per 1600 sqft (3.78 liters per 149 sqm).
               •  Structural Steel                               Estimating Formula: (1600 sqft per gal /Dry Mil Thickness) x
               •  Walkways and Balconies                         Solids Content = Application Rate per gallon.
               •  Warehouse Floors                               Surface Preparation
               •  Water and Wastewater Treatment Plants          In general, coating performance and adhesion are directly
                                                                 proportional to surface preparation. Most failures in the
                                                                 performance of surface coatings can be attributed to poor
                                                                 surface preparation. Polyurea coatings rely on the structural
              Packaging                                          strength of the substrate to which they are applied. All surfaces
                                                                 must be free of dust, dirt, oil, grease, rust, corrosion and other
                                                                 contaminants. When coating previously used substrates, it is
              10-gallon kit   5 gallons (18.9 liters) Side-A     important to consider the possibility of substrate absorption,
                              (Isocyanate side) and 5 gallons (18.9   which may affect the adhesion of the coating system,
                              liters) Side-B (Resin side)        regardless of the surface preparation. Polycoat recognizes
                                                                 the potential for unique substrates from one project to another.
              100-gallon kit  50 gallons (189 liters) Side-A     The following information is for general reference. For project-
                              (Isocyanate side) and 50 gallons (189   specific questions, contact Polycoat.
                              liters) Side-B (Resin side)


        POLYCOAT PRODUCTS TEL 562.802.8834  |  FAX 562.921.7363                                        Section 3.6
        info@polycoatusa.com  |  www.polycoatusa.com
