Page 115 - tmp

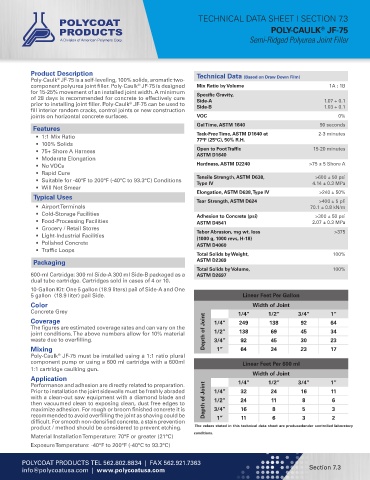

TECHNICAL DATA SHEET I SECTION 7.3
POLY-CAULK JF-75
®
Semi-Ridged Polyurea Joint Filler

Product Description
Poly-Caulk JF-75 is a self-leveling, 100% solids, aromatic two- Technical Data (Based on Draw Down Film)
®
component polyurea joint filler. Poly-Caulk JF-75 is designed Mix Ratio by Volume 1A : 1B
®
for 15-25% movement of an installed joint width. A minimum
of 28 days is recommended for concrete to effectively cure Specific Gravity, 1.07 + 0.1
prior to installing joint filler. Poly-Caulk JF-75 can be used to Side-A 1.03 + 0.1
®
fill interior random cracks, control joints or new construction Side-B
joints on horizontal concrete surfaces. VOC 0%
Gel Time, ASTM 1640 90 seconds
Features
• 1:1 Mix Ratio Tack-Free Time, ASTM D1640 at 2-3 minutes
77°F (25°C), 50% R.H.
• 100% Solids
• 75+ Shore A Harness Open to Foot Traffic 15-20 minutes
• Moderate Elongation ASTM D1640
• No VOCs Hardness, ASTM D2240 >75 ± 5 Shore A
• Rapid Cure
>600 ± 50 psi
• Suitable for -40°F to 200°F (-40°C to 93.3°C) Conditions Tensile Strength, ASTM D638, 4.14 ± 0.3 MPa
Type IV
• Will Not Smear
Elongation, ASTM D638, Type IV >240 ± 50%
Typical Uses
Tear Strength, ASTM D624 >400 ± 5 pli
• Airport Terminals 70.1 ± 0.8 kN/m
• Cold-Storage Facilities Adhesion to Concrete (psi) >300 ± 50 psi
• Food-Processing Facilities ASTM D4541 2.07 ± 0.3 MPa
• Grocery / Retail Stores
• Light-Industrial Facilities Tabor Abrasion, mg wt. loss >375
(1000 g, 1000 revs, H-18)
• Polished Concrete ASTM D4060
• Traffic Loops
Total Solids by Weight, 100%
Packaging ASTM D2369
Total Solids by Volume, 100%
600-ml Cartridge: 300 ml Side-A 300 ml Side-B packaged as a ASTM D2697
dual tube cartridge. Cartridges sold in cases of 4 or 10.
10-Gallon Kit: One 5 gallon (18.9 liters) pail of Side-A and One
5 gallon (18.9 liter) pail Side. Linear Feet Per Gallon
Color Width of Joint
Concrete Grey 1/4” 1/2” 3/4” 1”
Coverage 1/4” 249 138 92 64
The figures are estimated coverage rates and can vary on the
joint conditions. The above numbers allow for 10% material Depth of Joint 1/2” 138 69 45 34
waste due to overfilling. 3/4” 92 45 30 23
Mixing 1” 64 34 23 17
®
Poly-Caulk JF-75 must be installed using a 1:1 ratio plural
component pump or using a 600 ml cartridge with a 600ml Linear Feet Per 600 ml
1:1 cartridge caulking gun.
Width of Joint
Application
Performance and adhesion are directly related to preparation. 1/4” 1/2” 3/4” 1”
Prior to installation the joint sidewalls must be freshly abraded 1/4” 32 24 16 11
with a clean-out saw equipment with a diamond blade and 1/2” 24 11 8 6
then vacuumed clean to exposing clean, dust free edges to Depth of Joint
maximize adhesion. For rough or broom finished concrete it is 3/4” 16 8 5 3
recommended to avoid overfilling the joint as shaving could be 1” 11 6 3 2
difficult. For smooth non-densified concrete, a stain prevention
product / method should be considered to prevent etching. The values stated in this technical data sheet are producedunder controlled laboratory
conditions.
Material Installation Temperature: 70°F or greater (21°C)
Exposure Temperature: -40°F to 200°F (-40°C to 93.3°C)

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363
info@polycoatusa.com | www.polycoatusa.com Section 7.3
