Page 90 - Polycoat 10.2 Technical Data Sheet Polycaulk 82

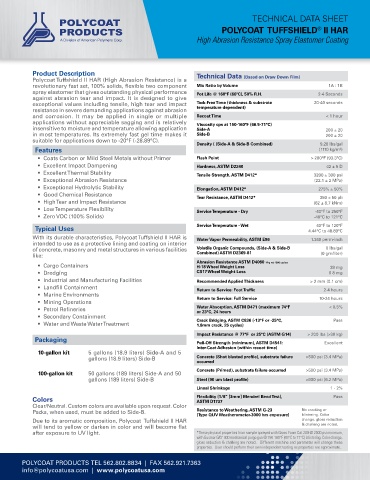

TECHNICAL DATA SHEET
POLYCOAT TUFFSHIELD II HAR
®
High Abrasion Resistance Spray Elastomer Coating

Product Description
Polycoat Tuffshield II HAR (High Abrasion Resistance) is a Technical Data (Based on Draw Down Film)
revolutionary fast set, 100% solids, flexible two component Mix Ratio by Volume 1A : 1B
spray elastomer that gives outstanding physical performance Pot Life @ 160ºF (66ºC), 50% R.H. 2-4 Seconds
against abrasion tear and impact. It is designed to give
exceptional values including tensile, high tear and impact Tack-Free Time (thickness & substrate 20-40 seconds
resistance in severe demanding applications against abrasion temperature dependent)
and corrosion. It may be applied in single or multiple Recoat Time < 1 hour
applications without appreciable sagging and is relatively Viscosity cps at 150-160°F (66.5-71°C)
insensitive to moisture and temperature allowing application Side-A 200 ± 20
in most temperatures. Its extremely fast gel time makes it Side-B 200 ± 20
suitable for applications down to -20°F (-28.89°C).
Density ( (Side-A & Side-B Combined) 9.28 lbs/gal
Features (1110 kg/m³)
• Coats Carbon or Mild Steel Metals without Primer Flash Point > 200°F (93.3°C)
• Excellent Impact Dampening Hardness, ASTM D2240 42 ± 5 D
• Excellent Thermal Stability Tensile Strength, ASTM D412* 3200 ± 300 psi
• Exceptional Abrasion Resistance (22.1 ± 2 MPa)
• Exceptional Hydrolytic Stability Elongation, ASTM D412* 275% ± 50%
• Good Chemical Resistance Tear Resistance, ASTM D412* 350 ± 50 pli
• High Tear and Impact Resistance (62 ± 8.7 kNm)
• Low Temperature Flexibility Service Temperature - Dry -40°F to 250°F
• Zero VOC (100% Solids) -40°C to 121°C
40°F to 120°F
Typical Uses Service Temperature - Wet 4.44°C to 48.89°C
With its durable characteristics, Polycoat Tuffshield II HAR is Water Vapor Permeability, ASTM E96 1.340 perm-inch
intended to use as a protective lining and coating on interior
of concrete, masonry and metal structures in various facilities Volatile Organic Compounds, (Side-A & Side-B 0 lbs/gal
like: Combined) ASTM D2369-81 (0 gm/liter)
• Cargo Containers Abrasion Resistance ASTM D4060 1 kg wt 1000 cycles: 39 mg
H-18 Wheel Weight Loss
• Dredging CS17 Wheel Weight Loss 0 8 mg
• Industrial and Manufacturing Facilities Recommended Applied Thickness > 2 mm (0.1 cm)
• Landfill Containment Return to Service: Foot Traffic 2-4 hours
• Marine Environments
• Mining Operations Return to Service: Full Service 10-24 hours
• Petrol Refineries Water Absorption, ASTM D471 (maximum 74°F < 0.5%
or 23°C, 24 hours
• Secondary Containment
• Water and Waste Water Treatment Crack Bridging, ASTM C836 (-13°F or -25°C, Pass
1.6mm crack, 25 cycles)
Impact Resistance @ 77°F or 25°C (ASTM G14) > 200 lbs (>90 kg)
Packaging
Pull-Off Strength (minimum), ASTM D4541: Excellent
Inter-Coat Adhesion (within recoat time)
10-gallon kit 5 gallons (18.9 liters) Side-A and 5
gallons (18.9 liters) Side-B Concrete (Shot blasted profile), substrate failure >500 psi (3.4 MPa)
occurred
Concrete (Primed), substrate failure occurred >500 psi (3.4 MPa)
100-gallon kit 50 gallons (189 liters) Side-A and 50
gallons (189 liters) Side-B Steel (90 um blast profile) >900 psi (6.2 MPa)
Lineal Shrinkage 1 - 2%
Colors Flexibility (1/8” [3mm] Mendrel Bend Test), Pass
ASTM D1737
Clear/Neutral. Custom colors are available upon request. Color
Packs, when used, must be added to Side-B. Resistance to Weathering, ASTM G-23 No cracking or
(Type QUV Weatherometer-3000 hrs exposure) blistering. Color
Due to its aromatic composition, Polycoat Tuffshield II HAR change, gloss reduction
will tend to yellow or darken in color and will become flat & chalking are noted.
after exposure to UV light. *These physical properties from sample sprayed with Graco Foam Cat 200 @ 2000 psi minimum,
with Gusmer GX7-400 mechanical purge gun @ 150-160°F (65°C to 71°C) blistering. Color change,
gloss reduction & chalking are noted.. Different machine and parameter will change these
properties. User should perform their own independent testing as properties are approximate..

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363
info@polycoatusa.com | www.polycoatusa.com
