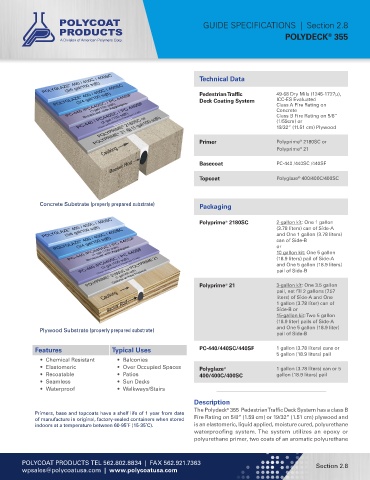

GUIDE SPECIFICATIONS | Section 2.8
POLYDECK 355
®
Technical Data
Pedestrian Traffic 49-68 Dry Mils (1245-1727µ),
Deck Coating System ICC-ES Evaluated
Class A Fire Rating on
Concrete
Class B Fire Rating on 5/8”
(1/59cm) or
19/32” (11.51 cm) Plywood
®
Primer Polyprime 2180SC or
Polyprime 21
®
Basecoat PC-440 /440SC /440SF
Topcoat Polyglaze 400/400C/400SC
®
Concrete Substrate (properly prepared substrate) Packaging
Polyprime 2180SC 2-gallon kit: One 1 gallon
®
(3.78 liters) can of Side-A
and One 1 gallon (3.78 liters)
can of Side-B
or
10 gallon kit: One 5 gallon
(18.9 liters) pail of Side-A
and One 5 gallon (18.9 liters)
pail of Side-B
Polyprime 21 3-gallon kit: One 3.5 gallon
®
pail, net fill 2 gallons (7.57
liters) of Side-A and One
1 gallon (3.78 liter) can of
Side-B or
15-gallon kit: Two 5 gallon
(18.9 liter) pails of Side-A
Plywood Substrate (properly prepared substrate) and One 5 gallon (18.9 liter)
pail of Side-B
Features Typical Uses PC-440/440SC/440SF 1 gallon (3.78 liters) cans or
5 gallon (18.9 liters) pail
• Chemical Resistant • Balconies
• Elastomeric • Over Occupied Spaces Polyglaze 1 gallon (3.78 liters) can or 5
®
• Recoatable • Patios 400/400C/400SC gallon (18.9 liters) pail
• Seamless • Sun Decks
• Waterproof • Walkways/Stairs
Description
The Polydeck 355 Pedestrian Traffic Deck System has a class B
®
Primers, base and topcoats have a shelf life of 1 year from date
of manufacture in original, factory-sealed containers when stored Fire Rating on 5/8” (1.59 cm) or 19/32” (1.51 cm) plywood and
indoors at a temperature between 60-95˚F (15-35˚C). is an elastomeric, liquid applied, moisture cured, polyurethane
waterproofing system. The system utilizes an epoxy or
polyurethane primer, two coats of an aromatic polyurethane
