Page 98 - Polycoat 10.2 Technical Data Sheet Polycaulk 82

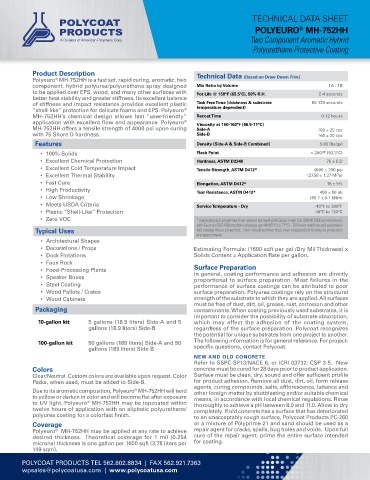

TECHNICAL DATA SHEET
POLYEURO MH-752HH
®
Two Component Aromatic Hybrid
Polyurethane Protective Coating

Product Description
Polyeuro MH-752HH is a fast set, rapid curing, aromatic, two Technical Data (Based on Draw Down Film)
®
component, hybrid polyurea/polyurethane spray designed Mix Ratio by Volume 1A : 1B
to be applied over EPS, wood, and many other surfaces with Pot Life @ 150ºF (65.5ºC), 50% R.H. 2-4 seconds
better heat stability and greater stiffness. Its excellent balance
of stiffness and impact resistance provides excellent plastic Tack Free Time (thickness & substrate 60-120 seconds
“shell-like” protection for delicate foams and EPS. Polyeuro temperature dependent)
®
MH-752HH’s chemical design allows fast “user-friendly” Recoat Time 0-12 hours
application with excellent flow and appearance. Polyeuro ® Viscosity at 150-160°F (66.5-71°C)
MH-752HH offers a tensile strength of 4000 psi upon curing Side-A 100 ± 20 cps
with 75 Shore D hardness. Side-B 160 ± 20 cps
Features Density (Side-A & Side-B Combined) 9.05 lbs/gal
• 100% Solids Flash Point > 200°F (93.3°C)
• Excellent Chemical Protection Hardness, ASTM D2240 75 ± 5 D
• Excellent Cold Temperature Impact Tensile Strength, ASTM D412* 4000 ± 200 psi
• Excellent Thermal Stability (27.56 ± 1.37 MPa)
• Fast Cure Elongation, ASTM D412* 15 ± 5%
• High Productivity Tear Resistance, ASTM D412* 450 ± 50 pli
• Low Shrinkage (68.7 ± 8.7 kNm)
• Meets USDA Criteria Service Temperature - Dry -40°F to 300°F
• Plastic “Shell-Like” Protection 40°C to 120°C
• Zero VOC *These physical properties from sample sprayed with Graco Foam Cat 200 @ 2000 psi minimum,
with Gusmer GX7-400 mechanical purge gun @ (65°C to 71°C) . Different machine and parameter
Typical Uses will change these properties. User should perform their own independent testing as properties
are approximate.
• Architectural Shapes
• Decorations / Props Estimating Formula: (1600 sqft per gal /Dry Mil Thickness) x
• Dock Flotations Solids Content = Application Rate per gallon.
• Faux Rock
• Food-Processing Plants Surface Preparation
• Speaker Boxes In general, coating performance and adhesion are directly
proportional to surface preparation. Most failures in the
• Steel Coating performance of surface coatings can be attributed to poor
• Wood Pallets / Crates surface preparation. Polyurea coatings rely on the structural
• Wood Cabinets strength of the substrate to which they are applied. All surfaces
must be free of dust, dirt, oil, grease, rust, corrosion and other
Packaging contaminants. When coating previously used substrates, it is
important to consider the possibility of substrate absorption,
10-gallon kit 5 gallons (18.9 liters) Side-A and 5 which may affect the adhesion of the coating system,
gallons (18.9 liters) Side-B regardless of the surface preparation. Polycoat recognizes
the potential for unique substrates from one project to another.
100-gallon kit 50 gallons (189 liters) Side-A and 50 The following information is for general reference. For project-
gallons (189 liters) Side-B specific questions, contact Polycoat.
NEW AND OLD CONCRETE
Refer to SSPC-SP13/NACE 6, or ICRI 03732: CSP 3-5. New
Colors concrete must be cured for 28 days prior to product application.
Clear/Neutral. Custom colors are available upon request. Color Surface must be clean, dry, sound and offer sufficient profile
Packs, when used, must be added to Side-B. for product adhesion. Remove all dust, dirt, oil, form release
agents, curing compounds, salts, efflorescence, laitance and
Due to its aromatic composition, Polyeuro MH-752HH will tend other foreign matter by shotblasting and/or suitable chemical
®
to yellow or darken in color and will become flat after exposure means, in accordance with local chemical regulations. Rinse
to UV light. Polyeuro MH-752HH may be topcoated within thoroughly to achieve a pH between 8.0 and 11.0. Allow to dry
®
twelve hours of application with an aliphatic polyurethane/ completely. If old concrete has a surface that has deteriorated
polyurea coating for a colorfast finish. to an unacceptably rough surface, Polycoat Products PC-260
Coverage or a mixture of Polyprime 21 and sand should be used as a
Polyeuro MH-752HH may be applied at any rate to achieve repair agent for cracks, spalls, bug holes and voids. Upon full
®
desired thickness. Theoretical coverage for 1 mil (0.254 cure of the repair agent, prime the entire surface intended
microns) thickness is one gallon per 1600 sqft (3.78 liters per for coating.
149 sqm).

POLYCOAT PRODUCTS TEL 562.802.8834 | FAX 562.921.7363
wpsales@polycoatusa.com | www.polycoatusa.com
