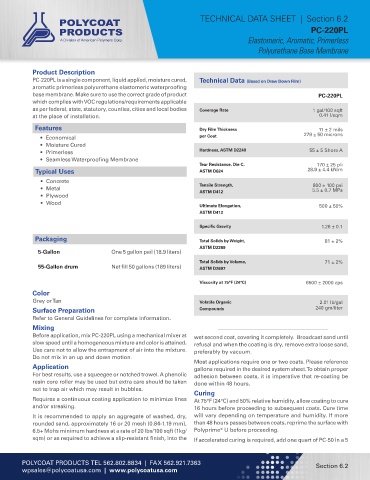

TECHNICAL DATA SHEET | Section 6.2
PC-220PL
Elastomeric, Aromatic, Primerless
Polyurethane Base Membrane
Product Description
PC-220PL is a single component, liquid applied, moisture cured, Technical Data (Based on Draw Down Film)
aromatic primerless polyurethane elastomeric waterproofing
base membrane. Make sure to use the correct grade of product PC-220PL
which complies with VOC regulations/requirements applicable
as per federal, state, statutory, counties, cities and local bodies Coverage Rate 1 gal/100 sqft
at the place of installation. 0.41 l/sqm
Features Dry Film Thickness 11 ± 2 mils
• Economical per Coat 279 ± 50 microns
• Moisture Cured
• Primerless Hardness, ASTM D2240 55 ± 5 Shore A
• Seamless Waterproofing Membrane
Tear Resistance, Die C, 170 ± 25 pli
Typical Uses ASTM D624 28.9 ± 4.4 kN/m
• Concrete
800 ± 100 psi
• Metal Tensile Strength, 5.5 ± 0.7 MPa
• Plywood ASTM D412
• Wood
Ultimate Elongation, 500 ± 50%
ASTM D412
Specific Gravity 1.26 ± 0.1
Packaging Total Solids by Weight, 81 ± 2%
ASTM D2369
5-Gallon One 5 gallon pail (18.9 liters)
Total Solids by Volume, 71 ± 2%
55-Gallon drum Net fill 50 gallons (189 liters) ASTM D2697
Viscosity at 75°F (24°C) 6500 ± 2000 cps
Color
Grey or Tan Volatile Organic 2.01 lb/gal
Surface Preparation Compounds 240 gm/liter
Refer to General Guidelines for complete information.
Mixing
Before application, mix PC-220PL using a mechanical mixer at wet second coat, covering it completely. Broadcast sand until
slow speed until a homogeneous mixture and color is attained. refusal and when the coating is dry, remove extra loose sand,
Use care not to allow the entrapment of air into the mixture. preferably by vacuum.
Do not mix in an up and down motion.
Most applications require one or two coats. Please reference
Application gallons required in the desired system sheet. To obtain proper
For best results, use a squeegee or notched trowel. A phenolic adhesion between coats, it is imperative that re-coating be
resin core roller may be used but extra care should be taken done within 48 hours.
not to trap air which may result in bubbles.
Curing
Requires a continuous coating application to minimize lines At 75°F (24°C) and 50% relative humidity, allow coating to cure
and/or streaking. 16 hours before proceeding to subsequent coats. Cure time
It is recommended to apply an aggregate of washed, dry, will vary depending on temperature and humidity. If more
rounded sand, approximately 16 or 20 mesh (0.84-1.19 mm), than 48 hours passes between coats, reprime the surface with
®
6.5+ Mohs minimum hardness at a rate of 20 lbs/100 sqft (1kg/ Polyprime U before proceeding.
sqm) or as required to achieve a slip-resistant finish, into the If accelerated curing is required, add one quart of PC-50 in a 5
